Components

Components

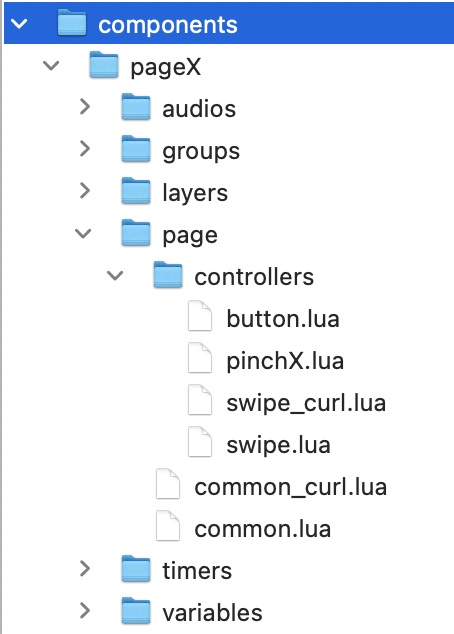

For instance components/pageX/page/swip.lua enables a page transition, and components/pageX/audios folder can have multiple audio lua files for instance short/audioOne.lua, long/audioTwo.lua. short audio file is loaded in to memory with audio.loadSound(), and long audio file is streaming with audio.loadStream().

local sceneName = ...
--
local scene = require('controller.scene').new(sceneName, {
    name = "pageX",
    components = {
      layers = {
          {  bg={} },
      },
      audios = { short = {"audioOne"}, long= {"audioTwo" },
      groups = {  },
      timers = {  },
      variables = {  },
      page = { "controllers.swipe" }
     },
    commands = { },
    onInit = function(scene) print("onInit") end
})
--
return scene

audio

group

timer

Common components

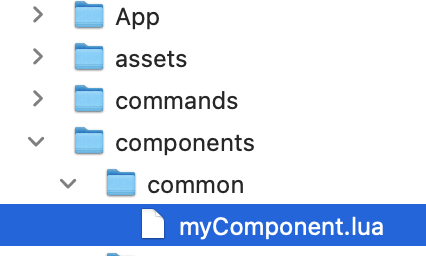

You can add a common component to components/common directory

And let it pass in arguments of bootstrap function in main.lua

local common = {commands = {"myEvent"}, components = {"myComponent"}}

require("controller.index").bootstrap({
  name="book", sceneIndex = 1, position = {x=0, y=0},
  common =common
})

Common components are executed after all the layer components of a scene are rendered. So you can access a layer component by UI.layers table.

for instance, the following myComponent.lua attaches a tap listener

local M = {}

local function listener(event)
      print("bg is tapped")
end

function M:init(UI)
end
--
function M:create(UI)
end

function _M:didShow(UI)
  local sceneGroup = UI.scene.view
  UI.layers.bg:addEventListener("tap", listener)
end

function M:didHide(UI)
  local sceneGroup = UI.scene.view
  UI.layers.bg:removeEventListener("tap", listener)
end
--
function M:destroy()
end
--
return M

component/layers lua

you can copy a lua file of layer - App/{book}/components/{page}/layers/{layer}.lua to the custom/components.

For instance, App/snowMan/components/page1/layers/ground.lua to be copied to custom/components folder

y9u can specify it in main.lua

...
...
local common = {commands = {"myEvent"}, components = {"ground"}}
...
...

then set isSharedAsset property true in in custom/components/hat.lua. then hat will be called envery page in snowMan book. custom components are called after the calls to each layer module, so the hat will be front.

...
...
local layerProps = {
 ...
 ...
-- Set isSharedAsset = true, and then set a common module. See kwikTheCatCommon.lua
--
M.isSharedAsset = true
M.imagePath   = "page1/hat.png"

function M:init(UI)
  --local sceneGroup = UI.scene.view
	if not self.isSharedAsset then
    self.imagePath = UI.page ..self.imageName
  end
end
--
function M:create(UI)
	if not self.isSharedAsset then
    self.imagePath = UI.page ..self.imageName
  end
  local obj = self:createImage(UI)
  UI.layers[#UI.layers] = obj
  self.obj = obj

end
...
...
