Deployment

There are the two files

kwik-exporter: com.kwiksher.kwik5.exporter_PS.ccx
plugin.kwik: plugin.data.tgz

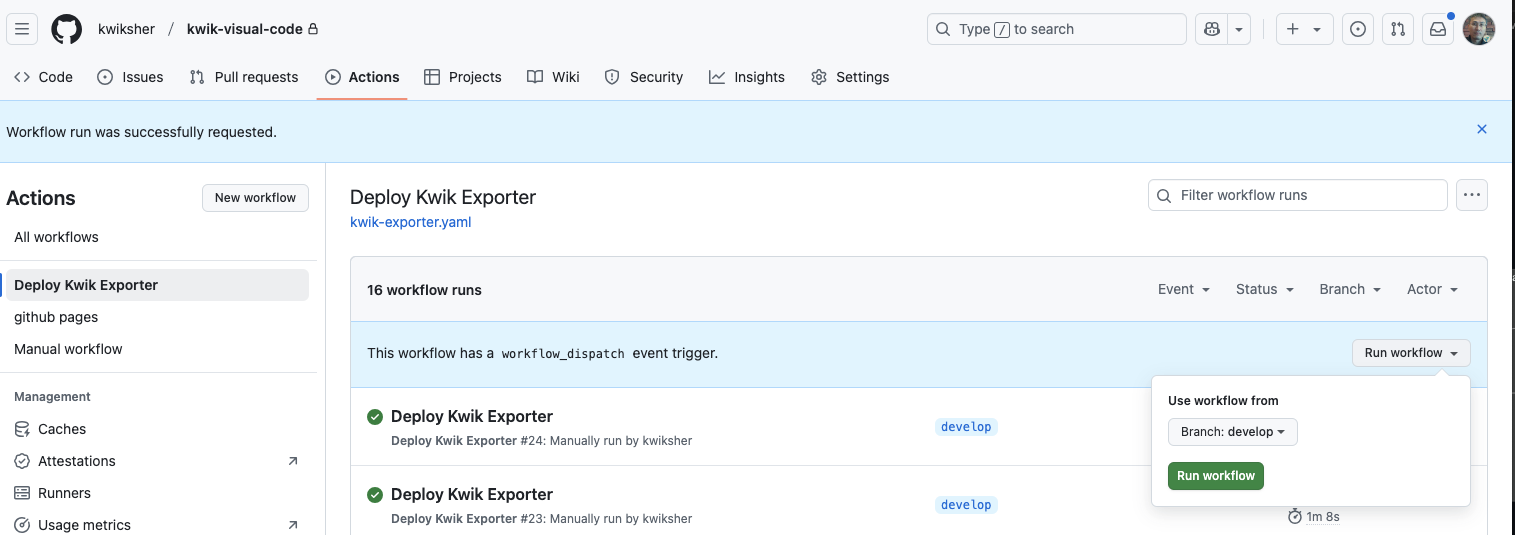

kwik-visual-code: kwik-expoter
- kwik-visual-code/develop/UXP/kwik-exporter
- yarn build
- git commit and push
- gh action: Deploy Kwik Exporter

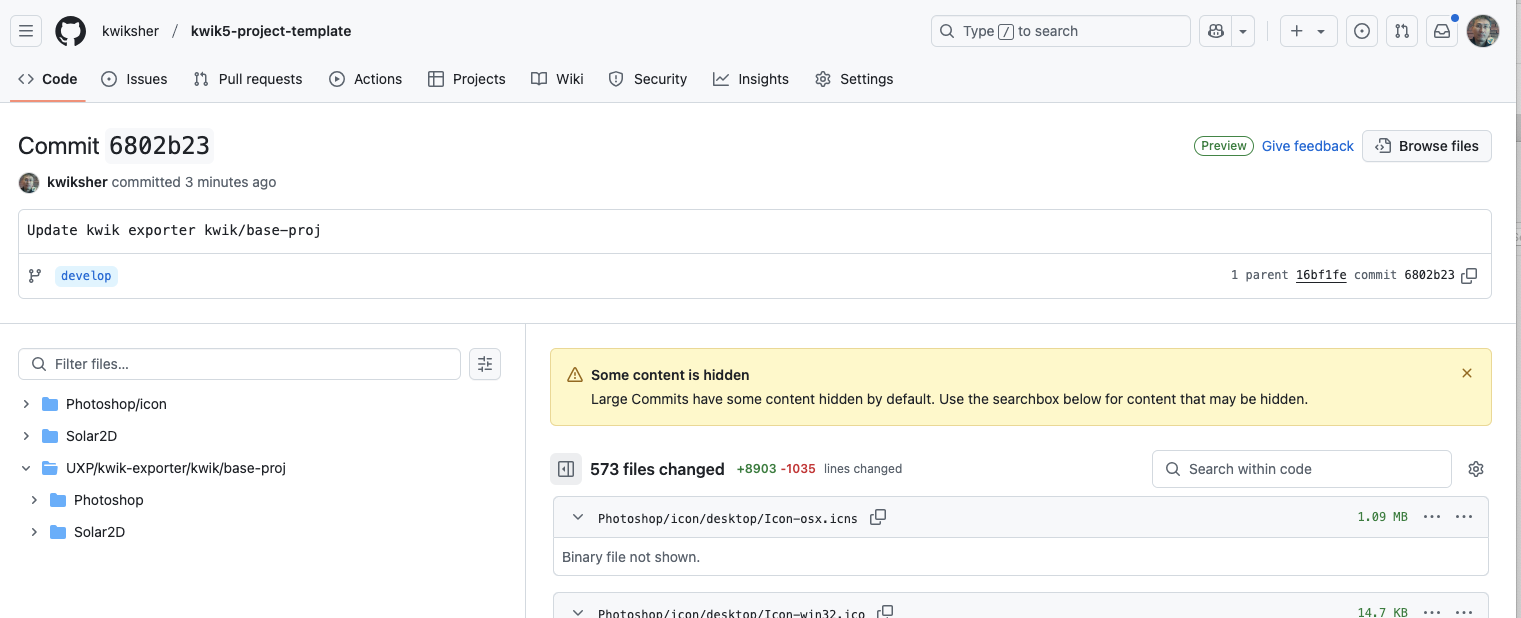

kwik/base-proj is compiled in template-proj from sample-book’s gh action, and pluin’s gh action at the time of push or the workflow-dispatch manually

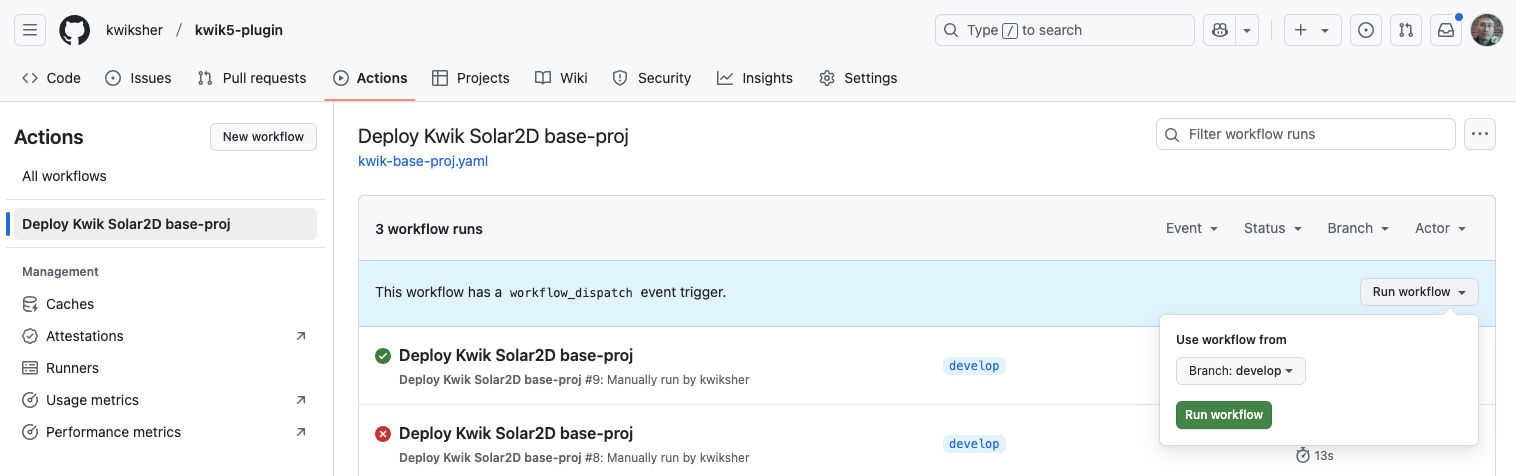

kwik5-plugin
- git commit and push
- gh action: Deploy Kwik Solar2D base-proj

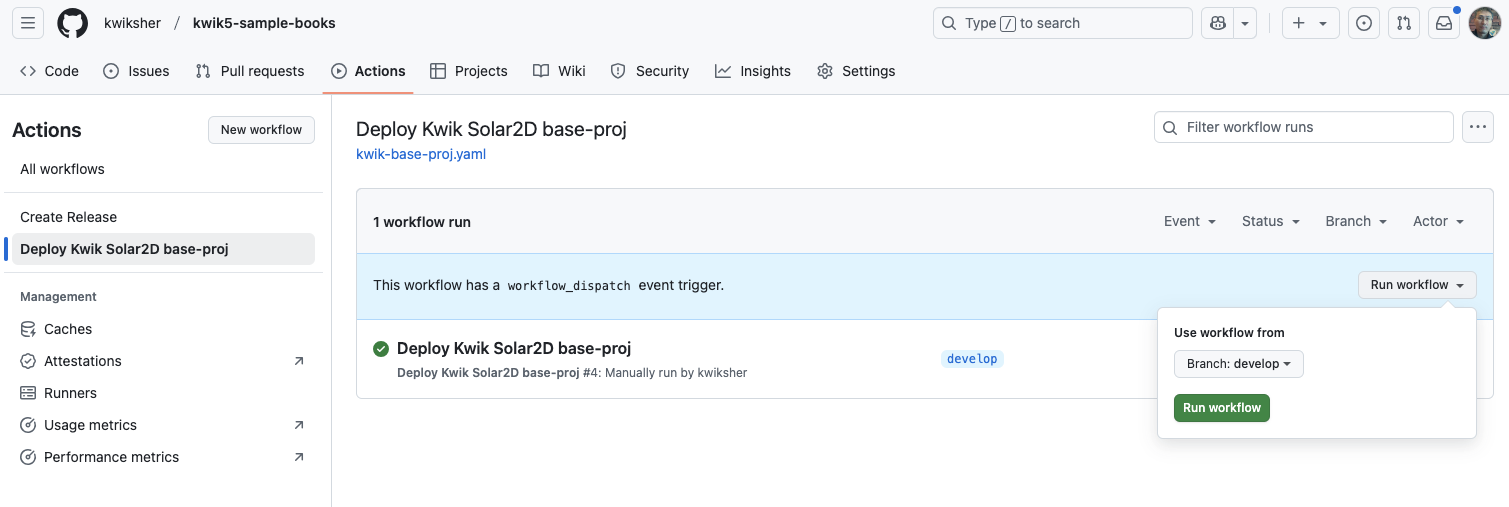

kwik5-sample-book: Photoshop and App/book
- git commit and push
- gh action: Deploy Kwik Solar2D base-proj
kwik5-template-project: build .ccx and then release
the .ccx depends on kwik-visual-code: kwik-expporter, kwik5-plugin and kwik5-sample-book: main.lua etc with App/book

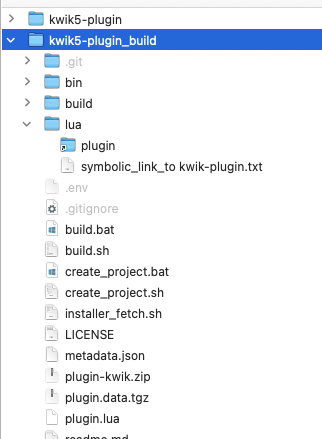

kwik5-plugin_build: plugin-kwik.data.tgz
- ./build.sh to upload it
this has the symbolic link to kwik5-plugin, so just build the tgz of the latest lua files

graph LR

subgraph plugin[kwik5-plugin]
  src_lua[src ]
  plugin-yaml[[gh action: push ]]
end

plugin_build([kwik5-plugin_build <br> local])

subgraph UXP[kwik-visual-code]
  develop/UXP/src
  UXP-yaml[[gh action: build]]
end

subgraph kwik5-project-template
  subgraph Solar2D
    App(App main.lua etc)
  end

  subgraph exporter[UXP: kwik-exporter]
    src[kwik/base-proj/<br>Solar2D/App main.lua etc]
    src_template[kwik/base-proj/<br>Solar2D <br> plugin/kwik/template]
    mainjs[main.js icons <br> manifest.json]
    src_photoshop(kwik/base-proj/<br>Photoshop)
  end

  subgraph book[Photoshop:book]
    landscape.psd
    portrait.psd
    icon/
    kwik_ATN/
  end

  subgraph release-binaries
    plugin-kwik.data.tgz
    install.sh
    ccx[com.kwiksher.kwik5 <br>exporter-ps_PS.ccx]
  end
  ghaction[[release.yaml]]
end

subgraph samples[kwik5 sample books]
  photoshopBook[Photoshop/book icon kwikATN]
  appBook[App/book <br> main.lua etc]
  gh-base-proj[[gh action yaml]]
end

gh-base-proj --o appBook
gh-base-proj --o photoshopBook
gh-base-proj -. psd & lua   .-> exporter
gh-base-proj -. psd  .-> book
gh-base-proj -. lua  .-> Solar2D

UXP-yaml -. gh action build .-> mainjs
ghaction --o exporter
ghaction -.-> ccx

plugin -.-> plugin_build -. upload .-> plugin-kwik.data.tgz
plugin-yaml -. gh action:push <br> template files .-> src_template
plugin --o samples

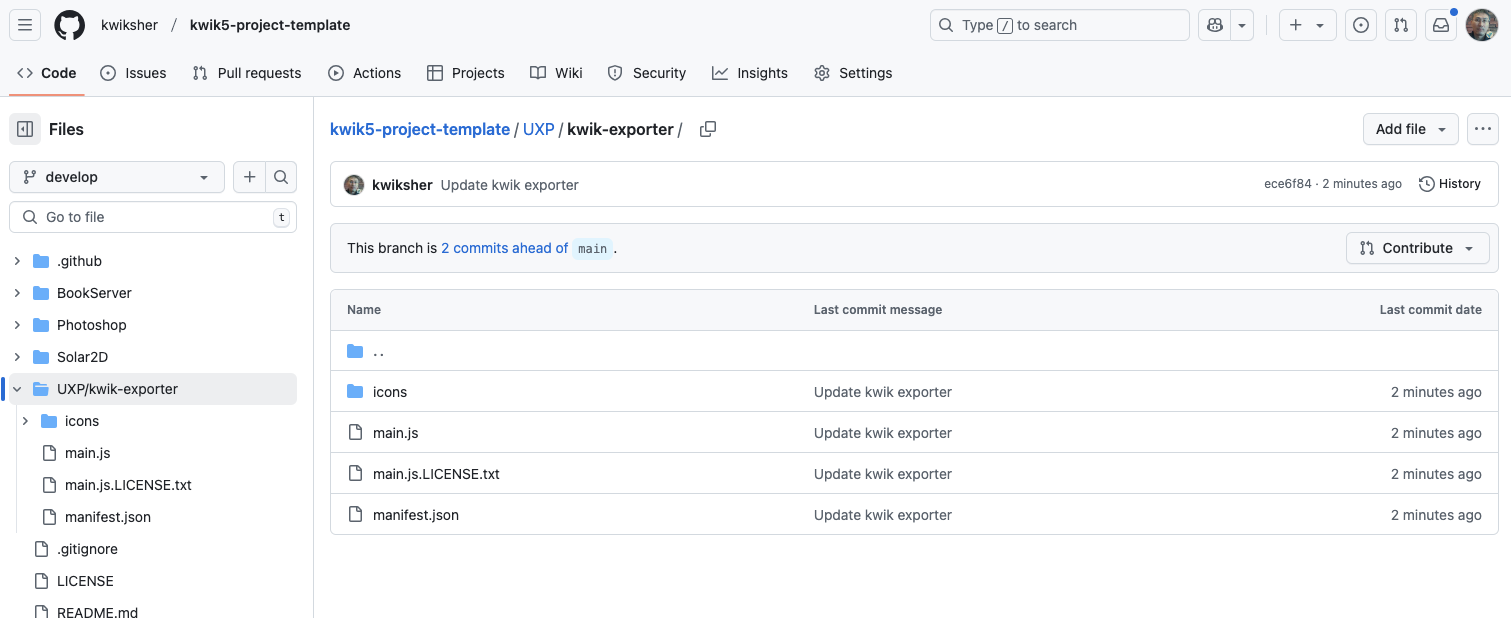

kwik exporter UXP to kwik5-project-template/UXP
from kwik-visual-code/UXP/kwik-expoter
to kwik5-project-template

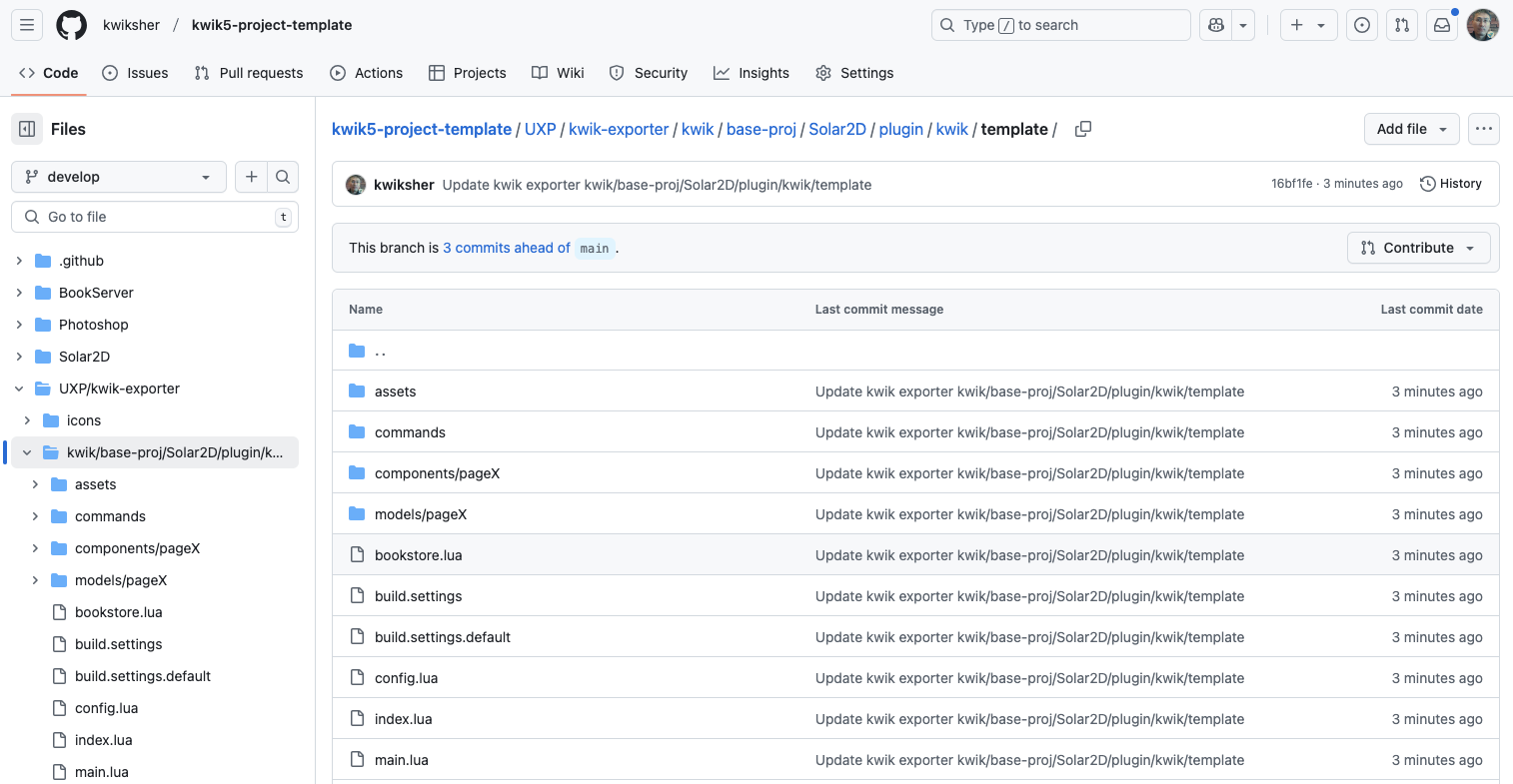

kwik5-plugin template to kwik5-project-template/UXP/kwik-exporter/
from kwik5-plugin
to kwik5-project-template
kwik5-sample-books’s psds and App/book to kwik5-project-template
from kwik5-sample-books
to kwik5-project-template

steps

cloud: kwik-visual-code repo
- UXP kwik-visual-code > develop >UXP
- gh action: kwik exporter to build the plugin/main.js
- gh action: build.sh for building the plugin.data.tgz
```
```
  cd kwik-editor_plugin
  build.sh
  push lua/kwik5.lua, kwik5/* to kwik5tmplt/plugin/
```
```

cloud: kwik5-projec-template repo

tar -czvf plugin.data.tgz -C Solar2D/plugin .
- sed main.lua enable autoUpdate()
- remove plugin dir in Solar2D for UXP and kwik5_project_yyyymmdd.zip
- UXP/copy_solar2d.command, cp template from plugin/kwik/template, don’t copy plugin
```
 kwik.autoUpdate()
```

gh acton: release.yaml

create .ccx with plugin/main.js and kwik/

- name: Rename for ccx
  run: |
    cd UXP
    mv ${{env.CCX_Dir}} ${{env.CCX_NAME}}

- name: Archive Release exporter ccx
  uses: TheDoctor0/zip-release@0.7.6
  with:
    type: 'zip'
    directory: UXP
    path:  ${{env.CCX_NAME}}
    filename: ${{ env.CCX_NAME}}.exporter_PS.ccx
    exclusions: '*.git*'

- name: Create Release
  id: create_release
  uses: softprops/action-gh-release@v2
  with:
    tag_name: ${{ env.CURRENT_DATETIME }}
    name: ${{ env.CURRENT_DATETIME }}
    draft: false
    prerelease: false
    files: |
      UXP/*.ccx

Or manually build .ccx from kwik5-projec-template repo

pull the latest develop branch. it contains the built UXP files.
run the following copy commands
UXP/kwik-exporter/kwik/base-proj is copied to Solar2D/ folder.
```
cd UXP
cp kwik-exporter com.kwiksher.kwik5
```
UXP Developer Tool > package it
com.kwiksher.kwik5.exporter_PS.ccx

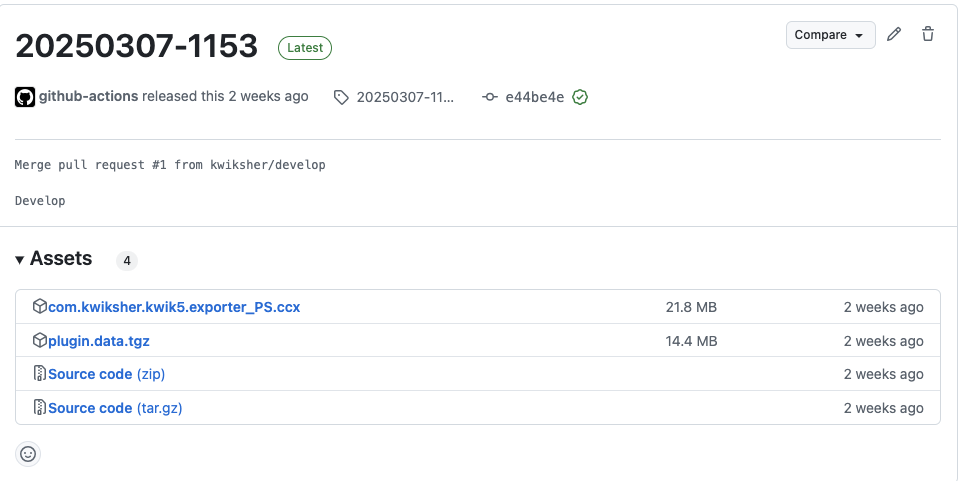

Release

the following zip files are downloaded and updated automatically in Solar2D simulator with the editor enabled

https://github.com/kwiksher/kwik5-project-template/releases

com.kwiksher.kwik5.exporter-ps_PS.ccx

the ccx is created by .github/workflows/release.yaml, and the plugin.data.tgz is manullay built locally and uploaded by build.sh in kwik5-plugin_build to append it to the latest release

user uses the install_plugin.sh in kwik5-project-template repo.

https://github.com/kwiksher/kwik5-project-template/releases/latest
- com.kwiksher.kwik5.exporter_PS.ccx
- plugin.data.tgz
```
tar -xzf plugin.data.tgz -C ~/Library/Application\ Support/Corona/Simulator/Plugins/plugin
```

memo : push UXP to kwik5-plugin

graph LR

develop[kwik-visual-code > develop >UXP > kwik-exporter]

develop -. kwik-exporter yaml pushes .-> kwik5-prject-template

kwik-exporter.yaml

- name: Install dependencies & Build
  run: |
    npm install
    cp -f patches_backup/*.ts node_modules/react-uxp-spectrum/dist/
    npm run prod
  working-directory: ./develop/UXP/kwik-exporter

  ...
  ...

  - name: List files
    run: |
      mkdir -p kwik5-project-template/UXP/kwik-exporter
      cp -rf develop/UXP/kwik-exporter/dist/* kwik5-project-template/UXP/kwik-exporter
      cp -rf develop/UXP/kwik-exporter/plugin/* kwik5-project-template/UXP/kwik-exporter
      cd kwik5-project-template
      git config --global user.email "yamamoto@kwiksher.com"
      git config --global user.name "kwiksher"
      git add -f UXP/kwik-exporter/*
      git commit -m "Update kwik exporter"

  - name: Push changes
    uses: ad-m/github-push-action@master
    with:
      github_token: ${{ secrets.API_TOKEN_GITHUB }}
      branch: develop
      directory: kwik5-project-template
      repository: kwiksher/kwik5-project-template
