Settings

Settings

https://docs.coronalabs.com/guide/distribution/buildSettings/index.html

https://docs.coronalabs.com/guide/distribution/advancedSettings/index.html

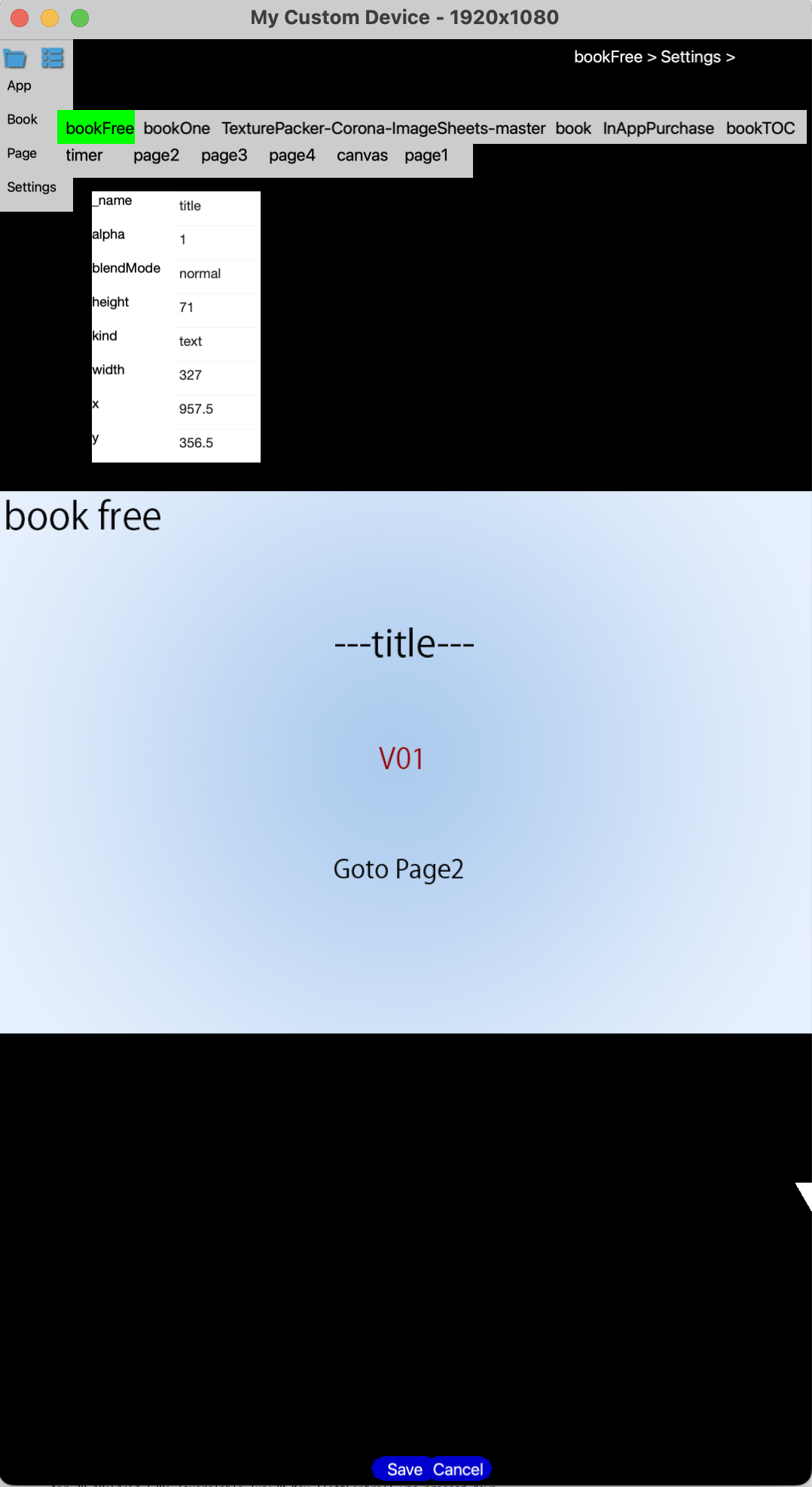

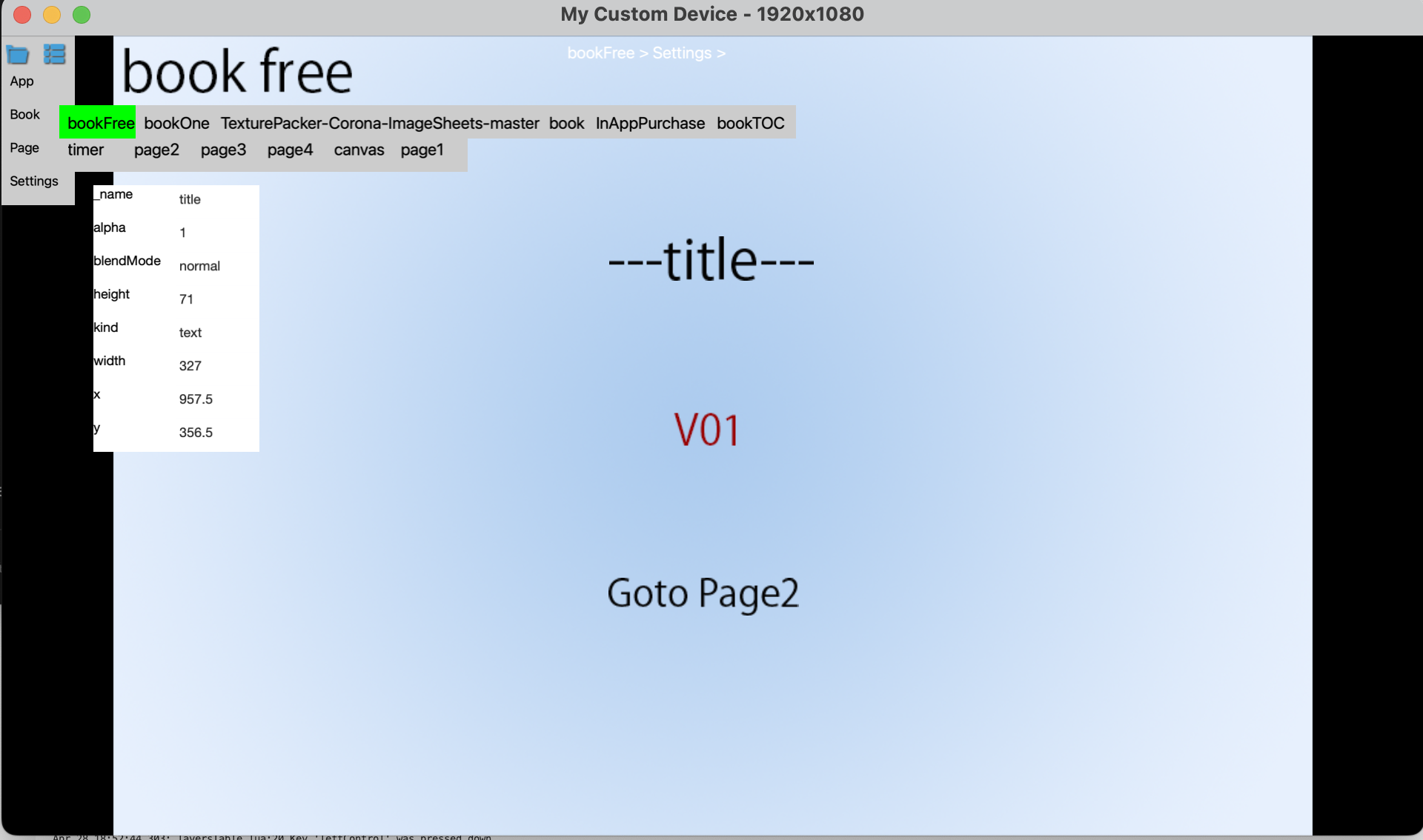

When orientation supports both of landscape and portrait, the main content area (a display group) should be translated to the center of screen.

each layers generated from Photoshop has fixed number of coordiate (x, y), for instance the center position of landscape 1920x1080 is at (1920/2, 1080/2) in landscape. If the actual device is rotated to portrait, the center position is (1080/2, 1920/2), for screen rotation event is detected, let’s move each layer by (1920/2 - 1080/2, 1080/2- 1920/2)

  sceneGroup.x, sceneGroup.y = display.contentCenterX, display.contentCenterY

• build.settings

  • orientation

    {
      default = "landscapeRight",
      supported = {
        "portrait", "portraitUpsideDown",
        "landscapeLeft", "landscapeRight"
      },

  • plguins

  • splashScreen

    {
        enable = true,
        image = "mySplashScreen.png"
    },

  • android

    https://docs.coronalabs.com/guide/distribution/buildSettings/index.html#android-build-settings

    {
      versionCode = "11",
      usesPermissions =
        {
            "android.permission.INTERNET",
            "android.permission.WRITE_EXTERNAL_STORAGE",
            "android.permission.ACCESS_FINE_LOCATION",
            "android.permission.ACCESS_COARSE_LOCATION",
            "com.android.vending.CHECK_LICENSE",
            "com.android.vending.BILLING",

        },
      usesExpansionFile = true,
      usesFeatures =
        {
            { name="android.hardware.camera", required=true },
            { name="android.hardware.location", required=false },
            { name="android.hardware.location.gps", required=false },
        },
    }

  • iphone

    https://docs.coronalabs.com/guide/distribution/buildSettings/index.html#iOSsettings

    {
      xcassets = "Images.xcassets",
      plist =
        {
            -- CFBundleIconFiles = {},  -- Obsolete!
            UILaunchStoryboardName = "LaunchScreen",  -- Required!
            UIStatusBarHidden = true,
            CFBundleDisplayName = "Solar2D App",
            CFBundleName = "Solar2D App",
            NSCameraUsageDescription = "This app would like to access the camera.",
            NSPhotoLibraryUsageDescription = "This app would like to access the photo library.",
            NSPhotoLibraryAddUsageDescription = "This app would like to add the photo library.",
            NSAppTransportSecurity = {
              NSExceptionDomains = {
                            [""] = {
                    NSIncludesSubdomains = true,
                    NSThirdPartyExceptionAllowsInsecureHTTPLoads = true
                },
           }
        },
    }

  • window

    {
      defaultMode          = "fullscreen",
      defaultViewWidth     = 640,
      defaultViewHeight    = 960,
      resizable            = true,
      minViewWidth         = 320,
      minViewHeight        = 480,
      enableCloseButton    = true,
      enableMinimizeButton = true,
      enableMaximizeButton = true,
      suspendWhenMinimized = true
      showWindowTitle      = false -- (macOS only)
      titleText            = {
          default = "Window Title Test",
          ["jp"]  = "Window タイトル",
      },
    }

  • macos

    https://docs.coronalabs.com/guide/distribution/macOSBuild/index.html

    {
      bundleResourcesDirectory = "osx-resources",
      plist =
        {
            CFBundleURLTypes =
            {
                {
                    CFBundleURLName = "My URL Scheme",
                    CFBundleURLSchemes = {
                        "myscheme",
                    },
                },
            },
            CFBundleDocumentTypes =
            {
                {
                    CFBundleTypeExtensions =
                    {
                        "png",
                    },
                    CFBundleTypeIconFile = "app.icns",
                    CFBundleTypeName = "public.png",
                    LSHandlerRank = "Alternate",
                    LSItemContentTypes =
                    {
                        "public.png",
                    },
                },
            },
            entitlements = {
              ["com.apple.security.personal-information.location"] = true,
            },
            NSHumanReadableCopyright = "Copyright © 2017 XYZ Company"
        },
    },

  • win32

    https://docs.coronalabs.com/guide/distribution/win32Build/index.html

    {
      preferenceStorage = "registry",
      singleInstance = false,
    }

  • splashScreen

    {
        ios = {
            enable = true,
            image = "mySplashScreen_iOS.png"
        },
        android = {
            enable = true,
            image = "mySplashScreen_Android.png"
        }
    },

  • excludeFiles

    {
      all = { "Icon*.png", "Images.xcassets", "Icon*.ico", "Icon*.icns" },
      android = { "LaunchScreen.storyboardc", "*.aac" },
      ios = { "*.ogg" },
      macos = { "Icon*.ico" },
      win32 = { "Icon*.icns" },
    }

• config.lua

  scale = "letterBox",
  fps = 30,
  google license key


Orientation Implementation

• Application.lua

  function M.getPosition(x, y)
      local mX = x and (x * 0.25 - 480 * 0.5) or 0
      local mY = y and (y * 0.25 - 320 * 0.5) or 0
      return mX, mY
  end

• scene.lua

  it handles the orientation change event

  function scene:create(event)
    ...
    self.UI.sceneGroup.x = display.contentCenterX
    self.UI.sceneGroup.y = display.contentCenterY
    self.UI.sceneGroup.anchorX = .5
    self.UI.sceneGroup.anchorY = .5
    self.view:insert(self.UI.sceneGroup)
    ...
  end

  local function onOrientationChange (event)
    if scene.view then
      local sceneGroup = scene.UI.sceneGroup
      local currentOrientation = event.type
      local ratio = 480/320
      local reverse = 320/480
      ....
      sceneGroup.x, sceneGroup.y = display.contentCenterX, display.contentCenterY
      if event.type =="portrait" and event.delta == -90  then
        sceneGroup:scale(ratio, ratio)
      elseif event.type =="portraitUpsideDown" and event.delta == -90  then
      ...
  end

TODO this plugin locks the screen orientation but can not find the document.

   {
        ["plugin.orientation"] = {
            publisherId = "tech.scotth",
        },
    },

TODO save & cancel buttons goes out at the bottom in landscape
