Replacement Editor

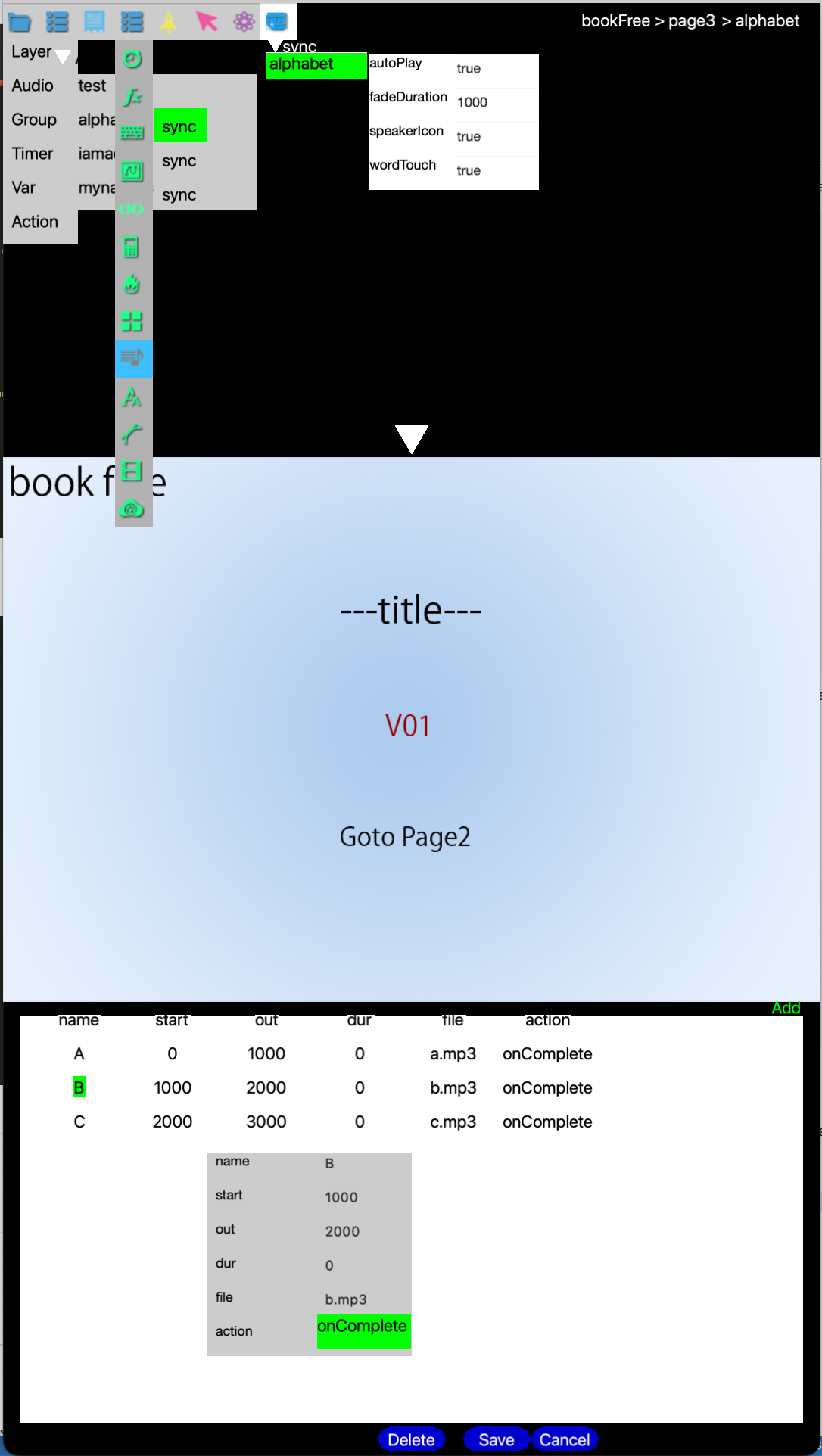

listbox and listButtons for syncText and Spreadsheet

User can create mutliple sprites as seqeunce data from a spresheet(imageSheet) , and for Sync Audio & Text, one line of text consists of words.

spitesheet model

sequenceData = {
    {
        name = "default",
        count = 2,
        loopCount = 0,
        loopDirection = "forward", -- reverse after last frame
        pause = false,
        start = 1,
        time = 1000,
    },
    {
      name = "test",
      frames = {1,2},
      loopCount = 0,
      loopDirection = "forward", -- reverse after last frame
      pause = false,
      time = 1000,
  }

sync audio model for “A B C”

M.line = {
  { start =  0, out = 1000, dur = 0, name = "A", file = "a.mp3", action = "onComplete"},
  { start =  1000, out = 2000, dur = 0, name = "B", file = "b.mp3", action = "onComplete"},
  { start =  2000, out = 3000, dur = 0, name = "C", file = "c.mp3", action = "onComplete"},
}

These arrays of data are displayed by listbox.lua and add/save/delete/select are handled in replacement.controller.add, replacement.controller.save, replecment.controller.delete, replacment.controller.select respectively.

M.commands = {"delete", "save", "cancel", "select", "add"}

---
function M:init(UI)
  local app = App.get()
  for i = 1, #self.commands do
    app.context:mapCommand(
      "editor.replacement.list." .. self.commands[i],
      "editor.replacement.controller." .. self.commands[i]
    )
  end
end
--

an optimized imagesheet from texture packer automatically

// TBI a tool for imagesheet











  ref: https://kwiksher.com/doc/kwik_tutorial/animations/working_with_spritesheet/#b-if-you-are-using-an-optimized-file-from-texture-packer

  //TBI the sequence data is generated by frames' data in sheetInfo lua?
  //if asset.json's sheetInfo is text string, it is from texture packer

  ```
  {
   filename = "slots.png",
   sheetInfo = "slots.lua",
  }
  ```

  Kwik needs these entry in sequence data to create each sprite
  ```
  Name:bird
  Start Frame 1
  Frame Count 1
  Length 1 sec

  Name:cat
  Start Frame 2
  Frame Count 1
  Length 1 sec
  ```

  the table of frames is exported from Texturepacker

  ```lua
  frames = {
      {
          -- bird
          x=2,
          y=2,
          width=191,
          height=222,

          sourceX = 1,
          sourceY = 1,
          sourceWidth = 192,
          sourceHeight = 223
      },
  '''

//TBI editor.template.components.pageX.replacement.defaults.spritesheet
// the sheetInfo for a Same size frames sheet should be a table

Now
```
local M = {
  name = "spritesheet",
  class = "spritesheet",
  type  = "uniform-sized", -- TexturePacker, Animate
  controls = {
    filename = "imagesheet.png",
    sheetInfo = "spritesheet",
```

Update it as same as sheetInfo in assets.json
```
sheetInfo = {
    width = 188,
  height = 188,
  sheetWidth = 376,
  sheetHeight = 188,
},
```

save

with the listbox value, save for a replacement component is as normal as the other components. editor.controller.save is processed and retrives useClassEditorProps() in replacment.controller.index

// TBI? listbox getValue in userClassEditorProps // suite_page1_replacements.lua does not have unit tests for saving spreadsheet/video. It has “editor.replacement.list.save” though.
