Get Started

• kwik plugin update
• TODO .ccx to be downloaded from Release instead of exporter_20241111-2115.zip
• where to check the version number?
• TODO https://github.com/kwiksher/kwik5tmplt/releases/kwik5_project_yyyymmdd.zip

System requirements

• Adobe Photoshop

  https://www.adobe.com/products/photoshop.html

  • (optional)UXP Developer Tool

    Products > UXP for Adobe Photoshop > Plugins > Quickstart Guide > Developer Tool > Installation

• Solar2D

  • Getting Started

    • Installing Solar2D — macOS
    • Installing Solar2D — Windows

  • Building & Distribution explains the following platform’s dependencies

    • Apple
      • iOS
      • macOS
      • AppleTV
    • Android
      • KindleFire
    • Win32

• Visual Studio Code

  https://code.visualstudio.com/download

  there is a command in Kwik editor to open a .lua file for editing in vscode. So please use Visual Studo Code for editing a Solar2D project

Kwik Tools

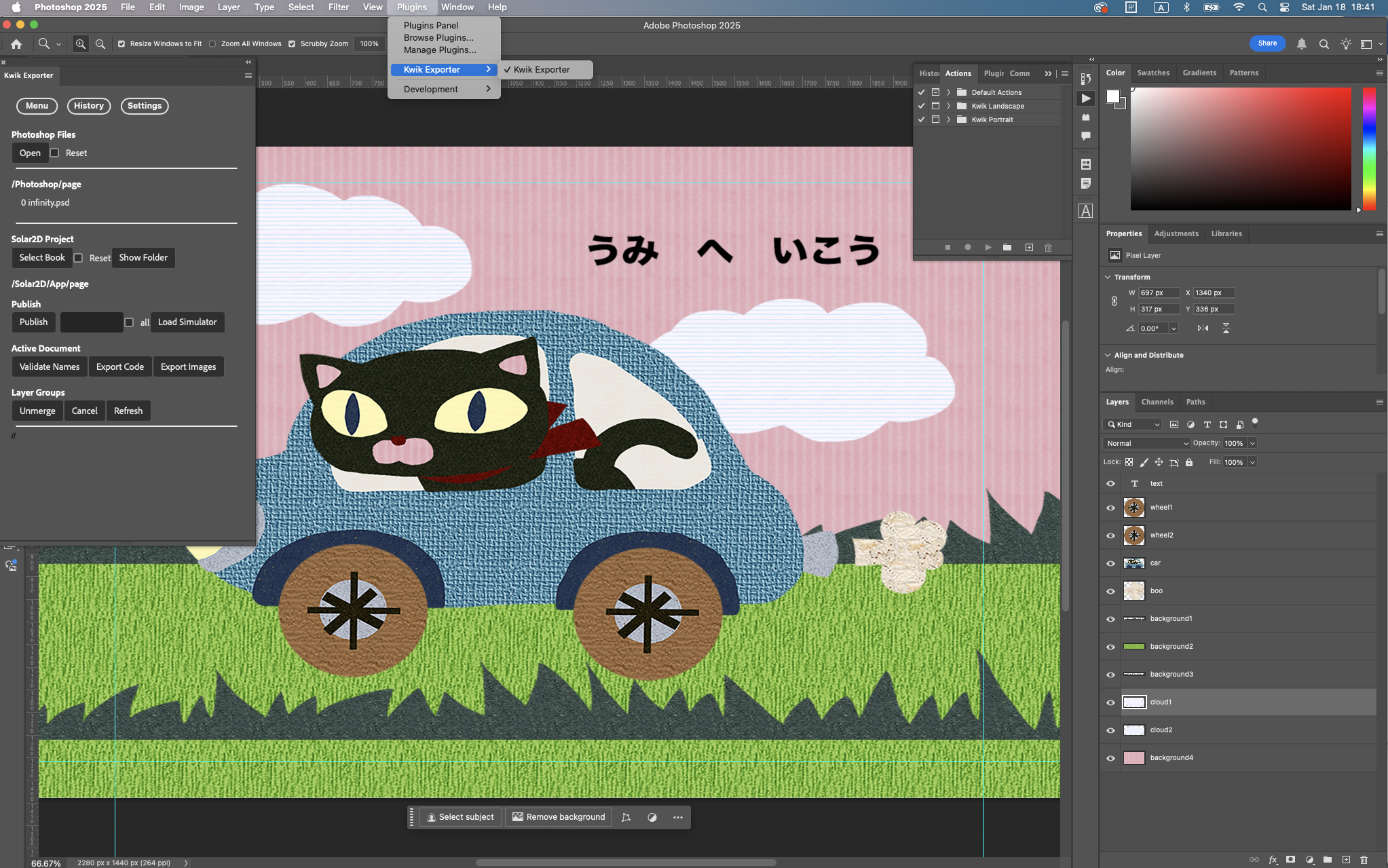

• Kwik expoter extension in Photoshop

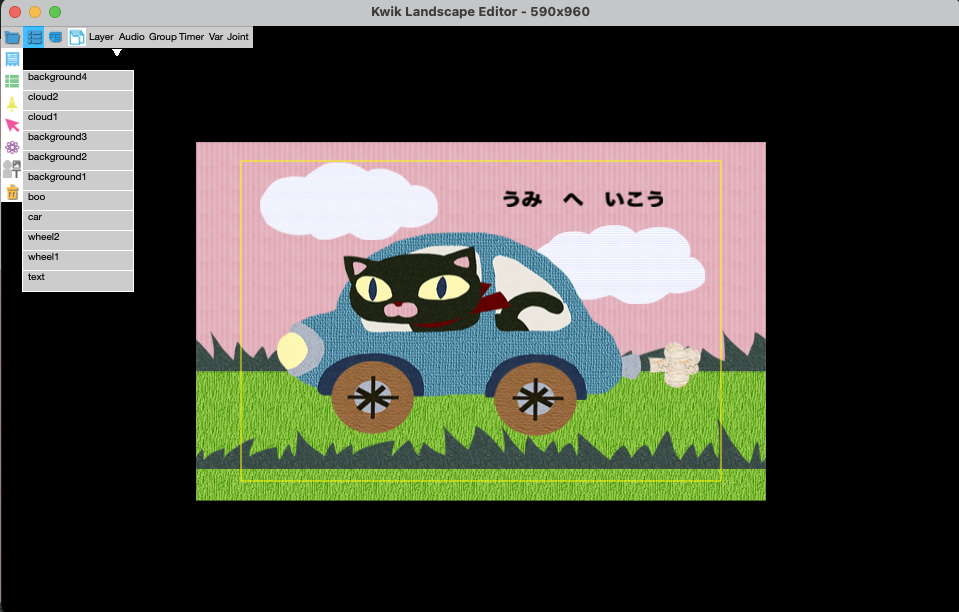

• Solar2D Simulator with Kwik Editor



graph TB

subgraph Solar2D

  subgraph App
    src[[soruce <br> Lua files]]
    subgraph Assets
      media[(media  <br>  .mp3 .wav  <br> .mp4 .mov )]
      images
    end
  end
  subgraph KwikEditor
     anim(animation tool)
     button(button tool)
     audio(audio tool)
     video(video tool)
     etc( phsics, timer, var ..)
  end
end

subgraph Photoshop
  PSD[[PSF files]]
  Kwik((extension <br>Kwik Expoter))
end


PSD -.-> Kwik
Kwik -.-> images
Kwik -.-> src

• kwik5_project_yyyymmdd.zip

  name	description	path	note
  kwik exporter	photoshop extension	UXP/com.kwiksher.kwik5.exporter-ps_PS.ccx	double click .ccx to install the extension to Photsohop
  Photoshop folder	photoshop files should be in a folder	Photoshop/book/landscape.psd Photsohop/book/portrait.psd	you can open .psd files by kwik epporter extension panel
  Solar2D project	solar2d project for kwik framework	Solar2D	open main.lua in Solar2D folder with Solar2D Simulator

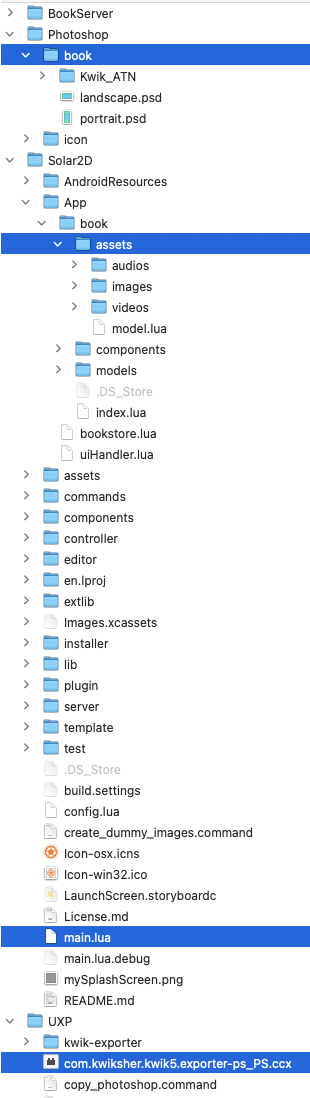

• Folder structure in kwik5_project_yyyymmdd.zip



Downloadables

https://github.com/kwiksher/kwik5tmplt/releases/kwik5_project_yyyymmdd.zip

Kwik5 Tool Release

• kwik5_project_yyyymmdd.zip

  extract .zip and you find the following files/folders for kwik project

  BookServer
  Photoshop
    book
      landscape.psd
      portrait.psd
    icon
      desktop
      icon_splash_launch-assets
      icon_splash_launch.psd
  Solar2D
    App/book
    main.lua
    build.settings
    config.lua
    ...
  UXP
    com.kwiksher.kwik5.exporter-ps_PS.ccx

  • build.settigns has kwik plugin

    settings = {
      plugins = {
          ["plugin.zip"] = {
              publisherId = "com.coronalabs",
          },
          ["plugin.kwik"] = {
               publisherId = "com.kwiksher",
          },

  • main.lua enable autoUpdate()

     kwik.autoUpdate()

  • Photoshop/book

    portrait.psd and landscape.psd in Photoshop/book are explain in Get Started > PSD Screen Size Orientation

  • Photsohop/icon

    this folder contains a sample psd and files for creating icons for application of iOS, Android, macOS, Win32. See Get Started > App Icon Launch/Splash image

  • Solar2D project

  • UXP/com.kwiksher.kwik5.exporter-ps_PS.ccx

how to update the tool

Solar2D project with the kwik plugin will automatically donwload and install the latest templates and the framework files if there is an update with a notification

When com.kwiksher.kwik5.exporter-ps_PS.ccx is updated, a message appears for you to install the the .ccx file to Photoshop. Double click the .ccx

Kwik5 Tool Dev

dev release contains unit testing sample books/pages

• https://github.com/kwiksher/kwik5tmplt/archive/refs/heads/develop.zip

  Please extract the zip to a folder, and run Solar2D/main.lua to see the samples in kwik editor

  • TODO updated Photoshop files to include unit testing .psd files

  ├── BookServer
  ├── Photoshop
  |   ├── icon
  |   ├── keyboard
  |   ├── kwikTheCat
  │   └── lingualSample
  │
  ├── Solar2D
  │      ├── App
  |      |   ├── animation
  |      |   ├── asset
  |      |   ├── interaction
  │      │   └── shape
  │      ├── assets
  │      ├── plugin
  |      |      ├── kwik
  |      |      |    ├── template
  |      |      |    ...
  |      |      └── kwik.lua
  |      ├── build.settings
  |      ├── main.lua
  │      ...
  │
  └──UXP/kwik-exporter/main.js etc

  • main.lua disable autoUpdate()

     -- kwik.autoUpdate()

  Tutorial covers how each sample is made with kwik exporter & editor

  Photoshop/*.psd files and published lua files in App/keyboard, kwikTheCat, lingualSample are updated with git push by kwiksher

  At the time of git pushing, Solar2D folder has been updated locally by Solar2D/installer module, so the latest modules of kwik5 are included.

  UXP/kwik-exporter raw files are also included in the zip. You can use UXP developer tool to load it. If you don’t like to use UXP Developer Tool, use com.kwiksher.kwik5.exporter-ps_PS.ccx in the zip file of Kwik5 Tool Release.

Github for developers

if you want to clone github repo

• https://github.com/kwiksher/kwik5tmplt

  when .ccx is built, UXP/kwik-exporter/kwik/base-proj should be aliased to Solar2D/ folder. Then you can load the exporter with UXP Developer Tool.

  copy_photoshop.command and copy_solar2d.command. It will copy Photoshop and Soalr2D folder to kwik/base-proj

  BookServer
  Photoshop
  Solar2D
      main.lua
  UXP
    kwik-exporter
        manifest.json
        kwik/base-proj <=== created by .command
    copy_photoshop.command
    copy_solar2d.command

  • When you launch, Solar2D/main.lua in the simulator,

    the installer module inside fetches/updates the files from github/kwiksher/kwik5tmplt

    • framework_20240904-1529.zip
    • editor_20240724-2246.zip
    • template_20241109-2228.zip
    • kwik-exporter_yyyymmdd-hhmm.zip
    • kwik-xeus_yyymmdd-hhmm.zip



    kwik samples in Photoshop and Solar2D/App folders are not updated by the instaler module. Download them from kwik5tmplt repository manually or pull the latest https://github.com/kwiksher/kwik5tmplt

• you may disable auto-update in the editor by commeting in main.lua

  require("components.common.myComponent")
  system.setTapDelay( 0.2 )
  --
  -- require("installer.index").init()
  --

A project folder

you may rename “book” in Photshop and Solar2D/App folder to an appropriate one such “game”, “myBook” etc.. and put your psd files into it.

 ├── BookServer
 ├── Photoshop
 │   └── book
 │       ├── landscape.psd
 │       └── portrait.psd
 ├── Solar2D
 │    ├── App
 │    │   └── book <==== the published images/lua files are inside this folder
 │    ├── LaunchScreen.storyboardc
 │    ├── Images.xcassets
 │    ├── jp.lproj
 │    ├── plugin
 |    │    ├── assets
 |    │    ├── extlib
 |    │    ├── installer
 |    │    ├── commands
 |    │    ├── controller
 |    │    ├── components
 |    │    ├── editor
 |    │    ├── en.lproj
 │    |    ├── template
 |    │    ├── test
 |    │    └── server
 │    ├── build.settings
 │    ├── config.lua
 │    ├── Icon-osx.icns
 │    ├── Icon-win32.ico
 │    ├── LaunchScreen.storyboardc
 │    ├── main.lua
 │    ├── main.lua.debug
 │    └── mySplashScreen.png
 │
 └── UXP
       ├── kwik-exporter
       │    ├── icons
       │    ├── main.js
       │    ├── main.js.LICENSE.txt
       │    └── manifest.json
       └── com.kwiksher.kwik5.exporter-ps_PS.ccx

• bookstore.lua

  you can specify folder names of book to be ignored in bookstore.lua

  the following book folders exist in kwik5tmplt repository.



  local M = {
    bookignored = {"animation", "asset", "interaction", "keyboard", "lingualSample", "mybook", "page", "physics", "replacement", "shape", }
  }
