Kwik Editor

you have published .psd files with kwik exporter. The images are the code for Solar2D are available in the output folder - App/book.

You can manually open Solar2D simulator with Solar2D/main.lua useually when not using kwik exporter in Photoshop.

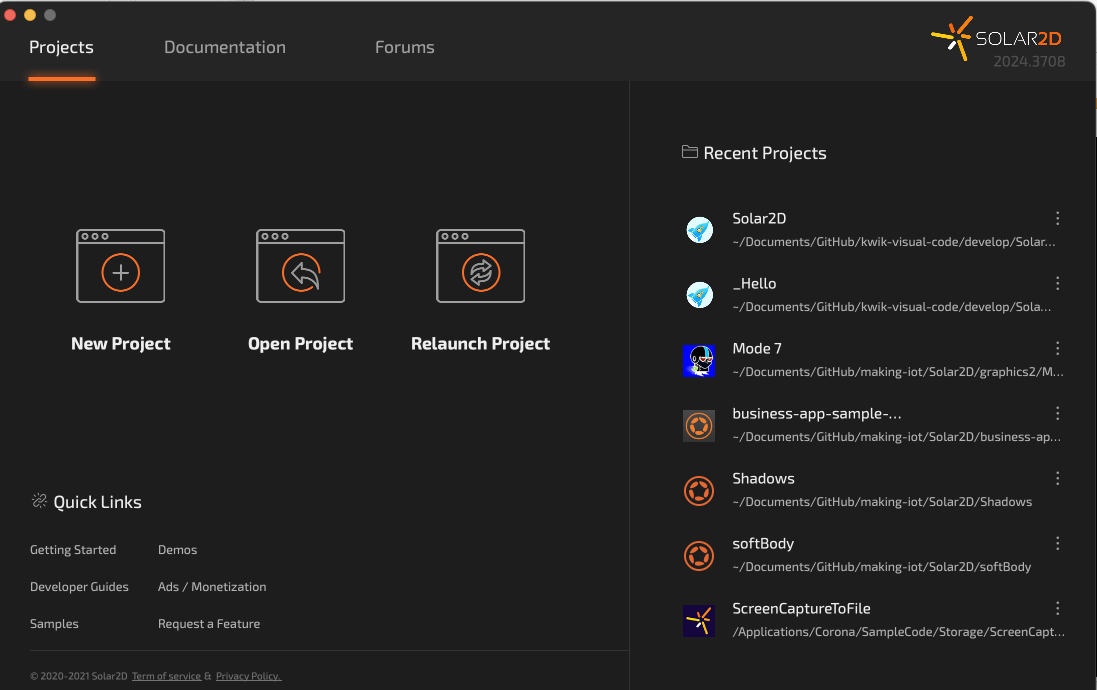

Solar2D Welcom Window > Open Project

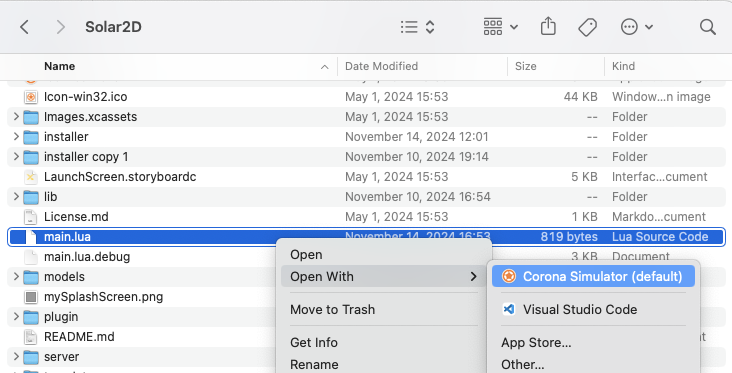

or in Finder, select main.lua and then click Corona Simulator in the context menu

I use vscode’ extension Run Terminal to load the simualtor like this

• mac

  {"command":"\"/Applications/Corona/Corona Simulator.app/Contents/MacOS/Corona Simulator\" ./ -no-console YES > ../tmp.log & code ../tmp.log",
  "name":"Solar2D"},

• win

    {
    "command": "'C:\\Program Files (x86)\\Corona Labs\\Corona\\Corona Simulator.exe' -no-console  main.lua > ../tmp.txt & code ../tmp.txt",
    "auto": true,
    },

Simulator Skin

Kwik Editor skin is available. It has been installed by installer module in Solar2D folder automtically.

Please select it from Simulator > Window > View As

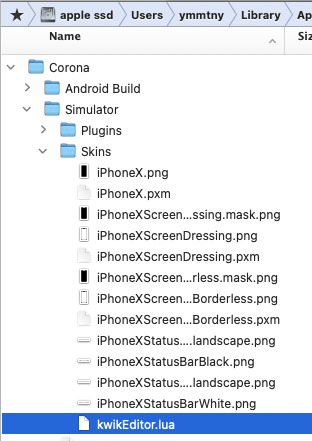

The install skin is located in the follwoing folder in Mac

Book & Page view

The first button is for book & page view. The second is to switch component view with showing layer table, The third one is to swith component view with action table

• book names and page names are lsited

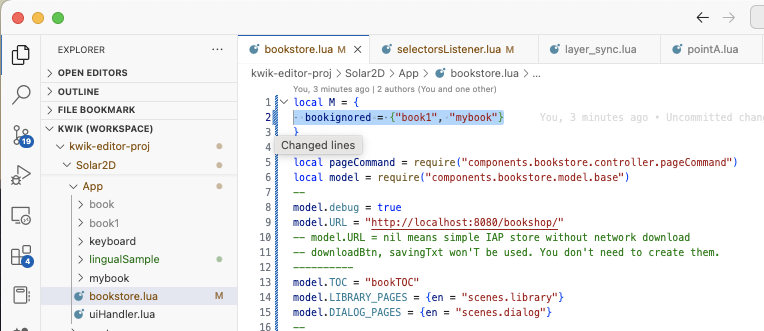

• how to ignore a book in App folder

  App/bookstore.lua, add a folder name to M.bookignored table

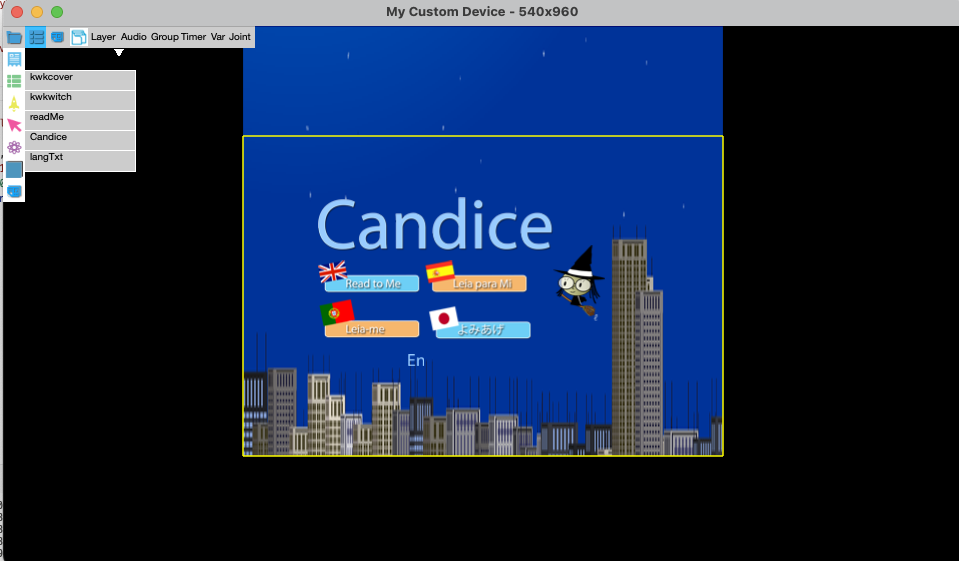

Component view

• layer names are listed by click the second icon at the top toolbar

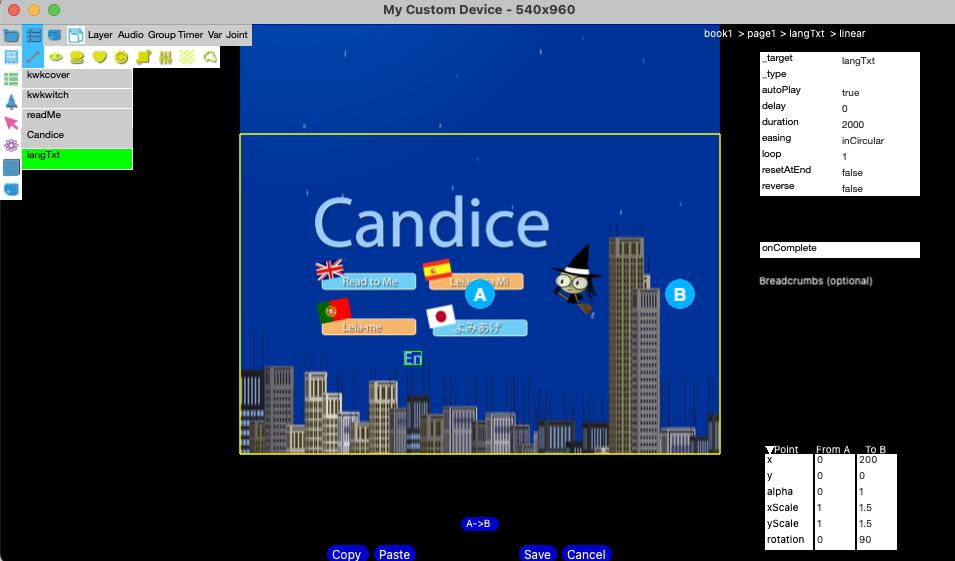

Linear Animation

1. select Candice layer

1. click rocket icon at the left vertical toolbar

1. click linear icon, it shows animation properties for editing



2. Cancel or Save to exit

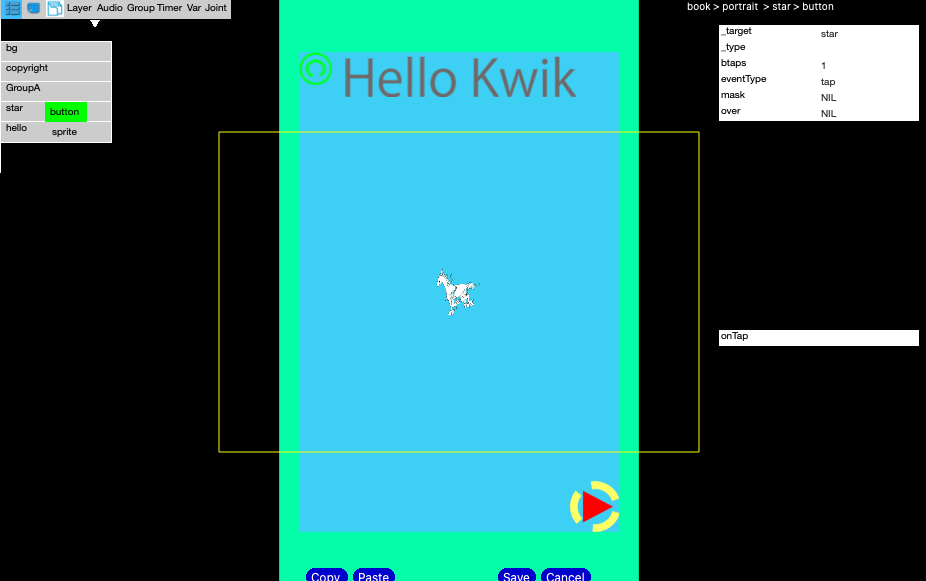

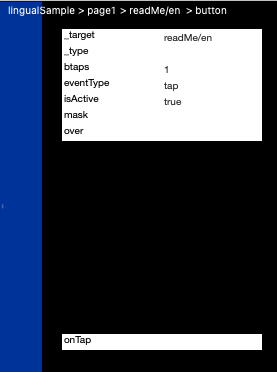

Button

1. select one of readMe layer



2. click Arrow icon at the left vertical toolbar



3. click Button icon , it shows button properties for editing



   _target is set with the layer name.



   you can click onTap property to attach an action.

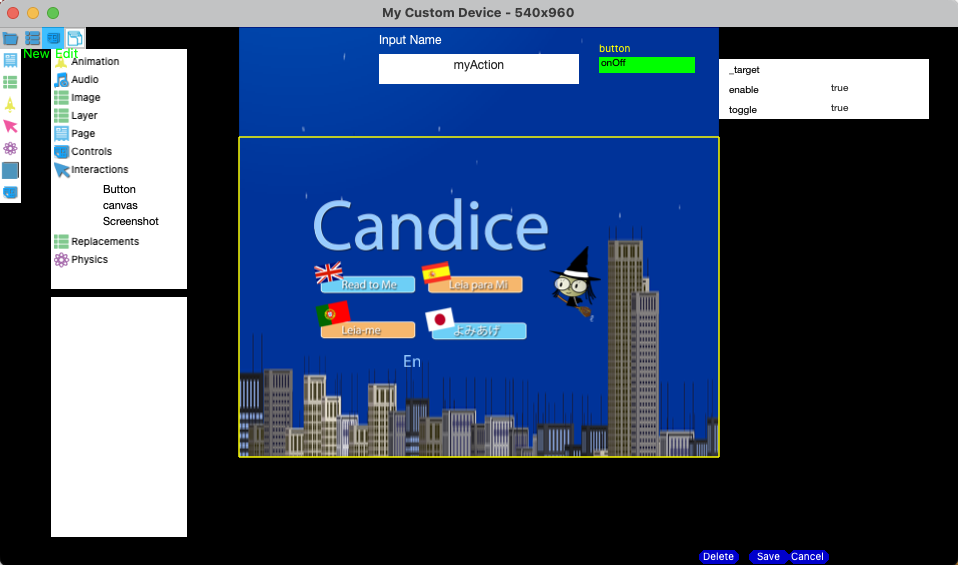

Action

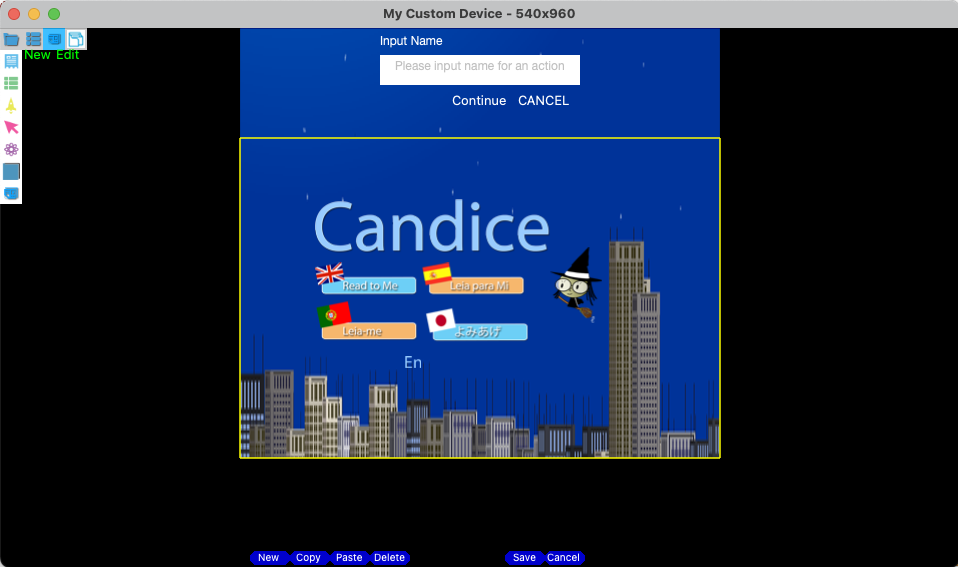

1. click action icon at the top tool bar, then select New

1. input an action name, and select Continue, you see action editing panel

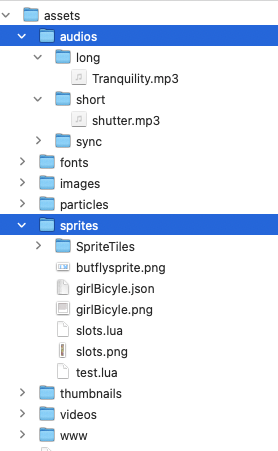

Assets

assets folder is the place you put media files like audio, particles, spritesheets, videos, www(html). In kwik editor, you set a link to it in a compnent’s properties panel.

For instance, plaing an BGM, you can put a .mp3 file into assets/audios/long folder manually, then use kwik editor > audio to create a new audio object. For video replacement, .mp4 should be put in assets/videos folder, then choose one of .mp4 files for video replacement.

audios/short for a short event sounds, they are small enough the entire file to be loaded in memory

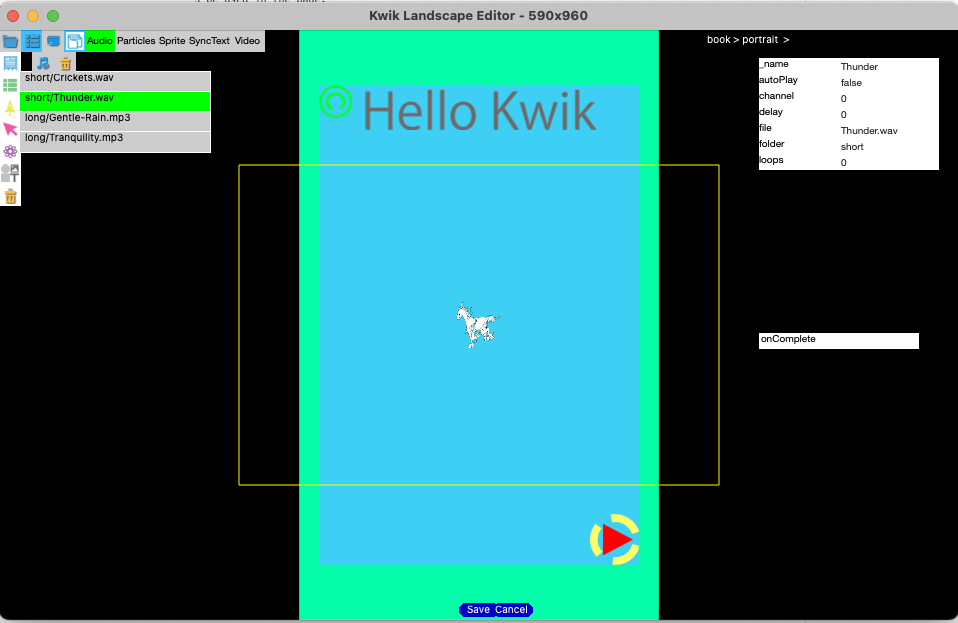

Audio

from asset icon > Audio, you can select which audo should be used in the page.

• if autoPlay is false, you need to make an action to play audio after saving the audio properties.

Thunder is saved with Save button, and you see it in audio table of component view.

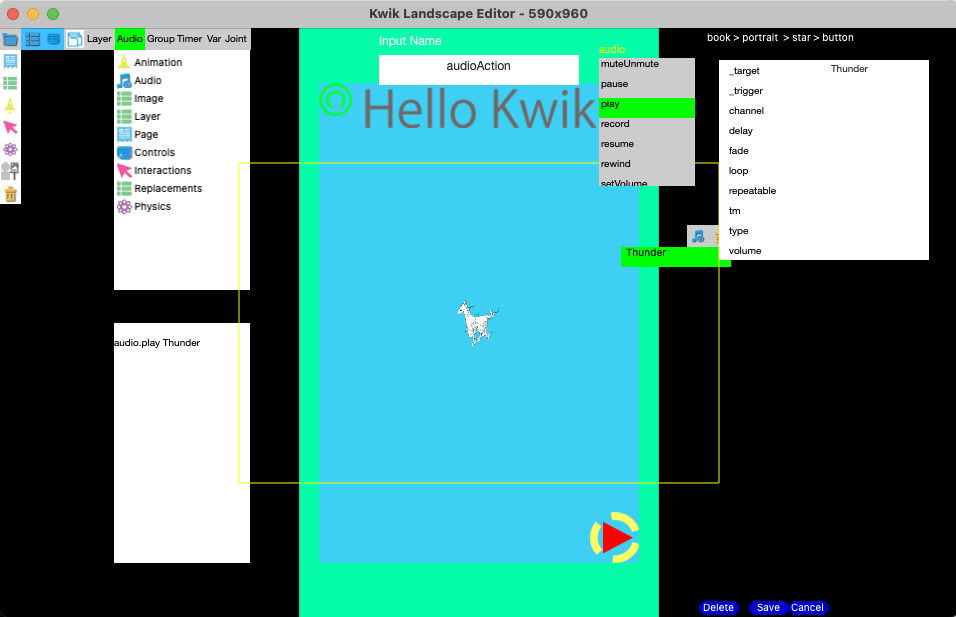

• Action > Audio > play



  • click _target property. It will show you audio table to select one of them.

    click Thunder and save it.

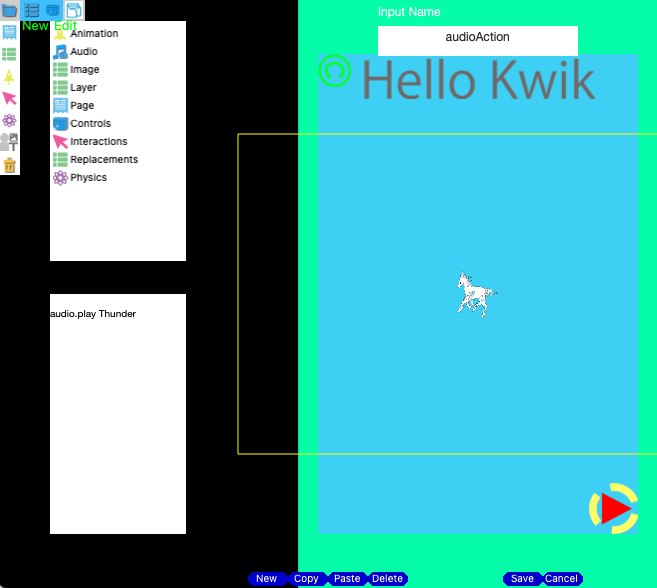

  Action command audio.play Thunder is saved



  Save the action

  The simulator is reloaded, and you see the new action in action table.

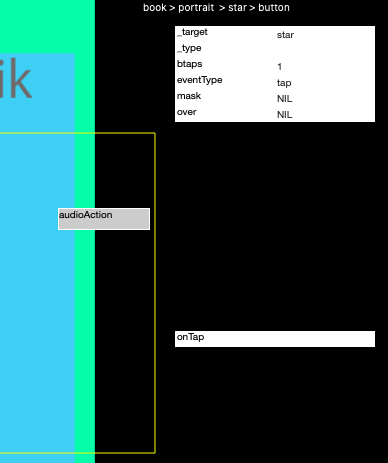

Edit button with onTap to execute an action

Finally you can set the new action to a button’s onTap event. Click onTap property of button, the action table appears for you to select one.

For edting a component, while pressing option key, mouse click the component(class) name in layer table.

1. click onTap



2. click audioAction



3. audioAction is set

Save the button.

main.lua

require("installer.index").init()

require("components.common.myComponent")

local restore = false
-- restore = true
if restore then
  os.execute("cd " .. system.pathForFile("../", system.ResourceDirectory) .. "; source undo_lua.command")
  return
end

if os.getenv("LOCAL_LUA_DEBUGGER_VSCODE") == "1" then
  local lldebugger = loadfile(os.getenv("LOCAL_LUA_DEBUGGER_FILEPATH"))()
  lldebugger.start()
end

local common = {
  commands = {"myEvent"},
  components = {
    -- "align",
    "thumbnailNavigation",
    "index"
  }
}

require("controller.index").bootstrap{
  name="book1",
  editing = true,
  goPage = "page1",
  position = {x=0, y=0},
  common = common}

Building and Distribution

Live build, HTML5

• disiable the editor or only enable the editor simulator

  if ( system.getInfo( "environment" ) == "simulator" ) then
      print( "You're in the Solar2D Simulator." )
  end
