Group

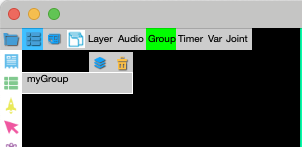

Toolbar > Group

icons

new group
trash

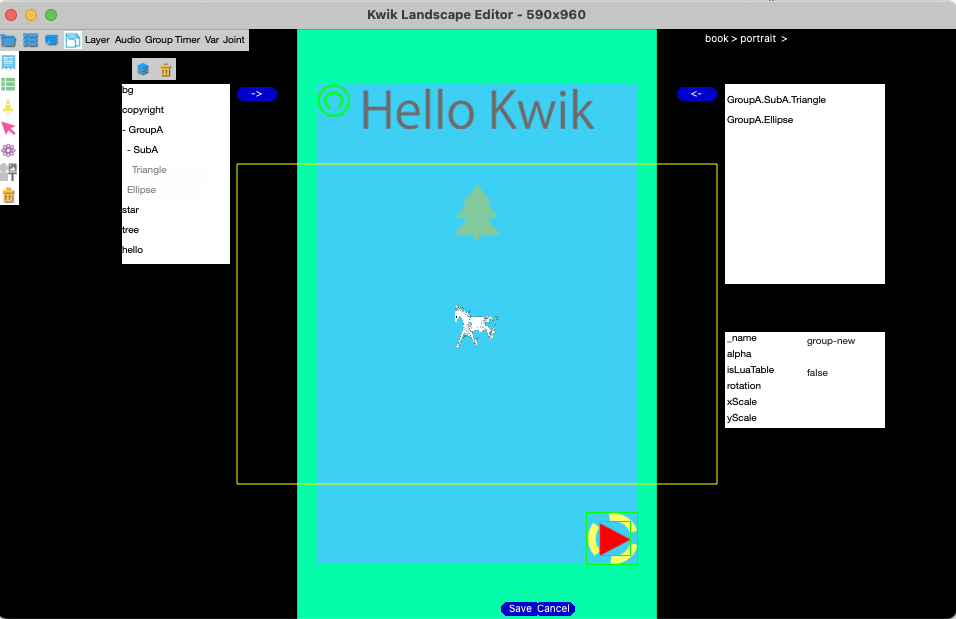

New/Modify

members of a group are chosen from layer table on the left.

Layer table <- -> Group member table
use left/right arrow buttons to add/remove between layer table and group-member table.
- Add/Remove icons

Group properties

name
alpha
isLuaTable: false
if true, display.newGroup is not created, a normal lua table is internally created, and you can use it with your external code.
you can access the group with UI.groups, it can be a displayGroup or a normal lua table which contains the layer names of text string.
```
  local myGroup = UI.groups["myGroup"]
```
rotation
xScale
yScale

App/book/components/page/groups/myGroup.lua

local props = {
  name       = "myGroup",
  members   = {
    "GroupA.SubA.Triangle",
    "GroupA.Ellipse",
  },
  properties = {
    alpha = NIL,
    xScale = NIL,
    yScale = NIL,
    rotation = NIL,
    isLuaTable = false
  }
}

if props.properteis.isLuaTable then
  UI.groups[props.name] = props.members
else
  UI.groups[props.name] = display.newGroup()
  ...
end

return require("components.kwik.page_group").set(props)

Group Table

App/book/componets/page/index.lua

groups are rendered after layers. There is not GUI to change the order of groups. You may change the order of entries of groups manually in vscode.

local sceneName = ...
local model = {
  --name = "",
  components = {
    layers = {
      ...
      ...
    },
    audios = { },
    groups = {
      {myGroup={}}
    },
    timers = {  },
    variables = {  },
    joints    = {  },
    page = {  }
  },
  ...
...

New
Rename
Edit
In vscode
Copy
Paste
Delete

Animation/Interaction

All animations: Linear Blink Bounce Pulse Rotation Tremble Switch Filter Path will work with a group

Interactions: Button, Drag, Pinch, Swipe works with a group.

Layer replacements (spritesheet etc) are not supprted
