Page View

Book table

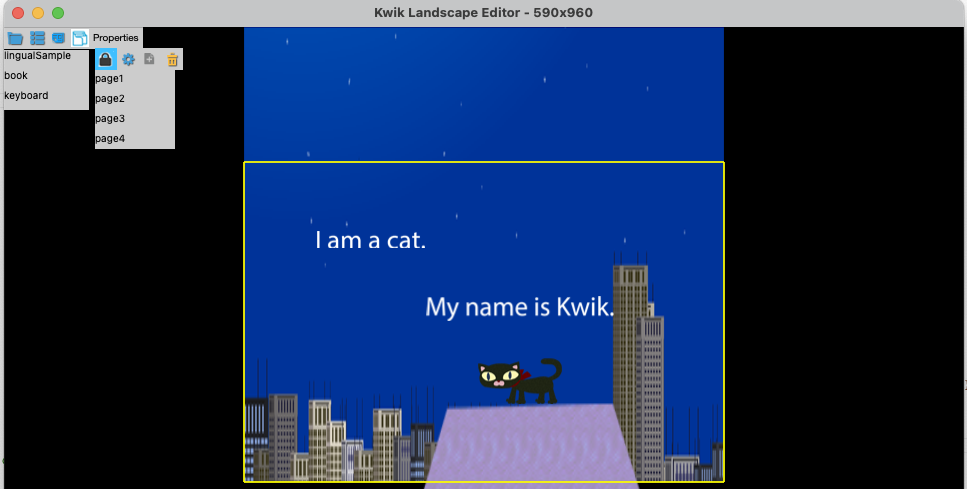

Solar2D/main.lua is loaded with editing true, it will show book and page tables.

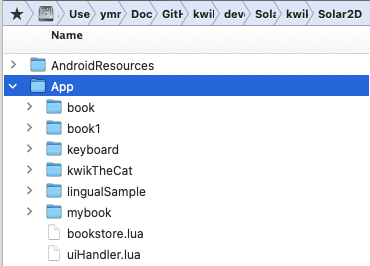

the books are listed from Solar2D > App folder

If you like to filter some books out of the list, edit App/bookstore.lua

local M = {
  bookignored = {"book1", "mybook", "kwikTheCat"}
}

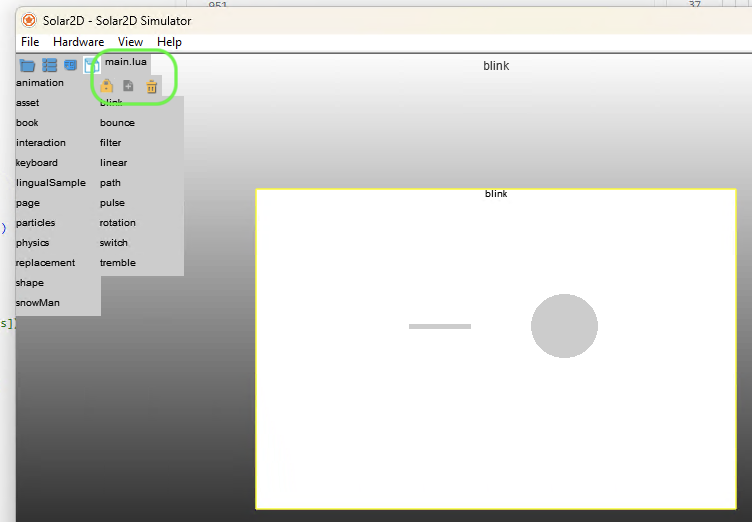

main.lua and Icons

main.lua

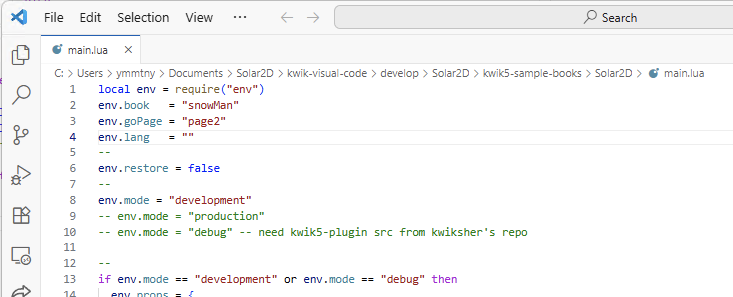

Click the text lable, main.lua is opened in Visual Studio Code(vscode)

Icons

Page lock

you can click lock icon on the top of page table. When the simulator is reloaded, it will navigate to the locked page for editing.

• not locked



• locked

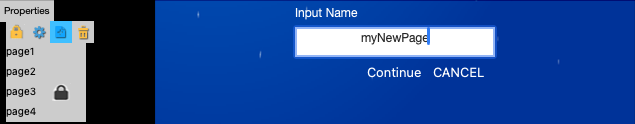

Add Page

• Input page name



  App/book/index.lua has the list of page table

  local scenes = {
    "page1",
    "page2",
    "page3",
    "page4",
    "myNewPage",
  }
  return scenes

Trash

current page will be removed.

Context Menu

book name

• Rename
• Delete
• In vscode

page name

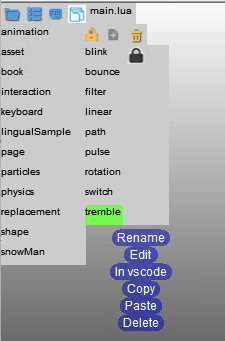

if you right-click a page in page table, it will show the context menu

• New

  adds a new page

• Rename

  renames the current page

• Edit

  (TODO) edit the page properties

• In vscode

  index.lua is show.

• Copy

  copies the current page

• Paste

  creates page_copied. Please use Rename to change the name

• Delete

  deletes the page

In vscode

index.lua is opened in visual studio code. You can use vs code alt + arrow up/down to change the order of layers by moving up/down layer’s line.

• App/book/components/index.lua

  local sceneName = ...
  --
  local scene =
    require("controller.scene").new(
    sceneName,
    {
      --name = "landscape",
      components = {
        layers = {
          {
            background = {
              class = {}
            }
          },
          {
            bg = {
              class = {}
            }
          },
          {
            copyright = {
              class = {}
            }
          },
          {
            GroupA = {
              class = {}
            }
          },
          {
            star = {
              class = {}
            }
          },
          {
            hello = {
              class = {}
            }
          }
        },
        audios = {},
        groups = {},
        timers = {},
        variables = {},
        joints = {},
        page = {}
      },
      commands = {},
      onInit = function(scene)
        --print("onInit")
      end
    }
  )
  --
  return scene
