The following steps to make a canvas to draw with touching the screen

You can download the tutorial files

the screenshots are of kwik3 but the project file is updated with Kwik4

New Project

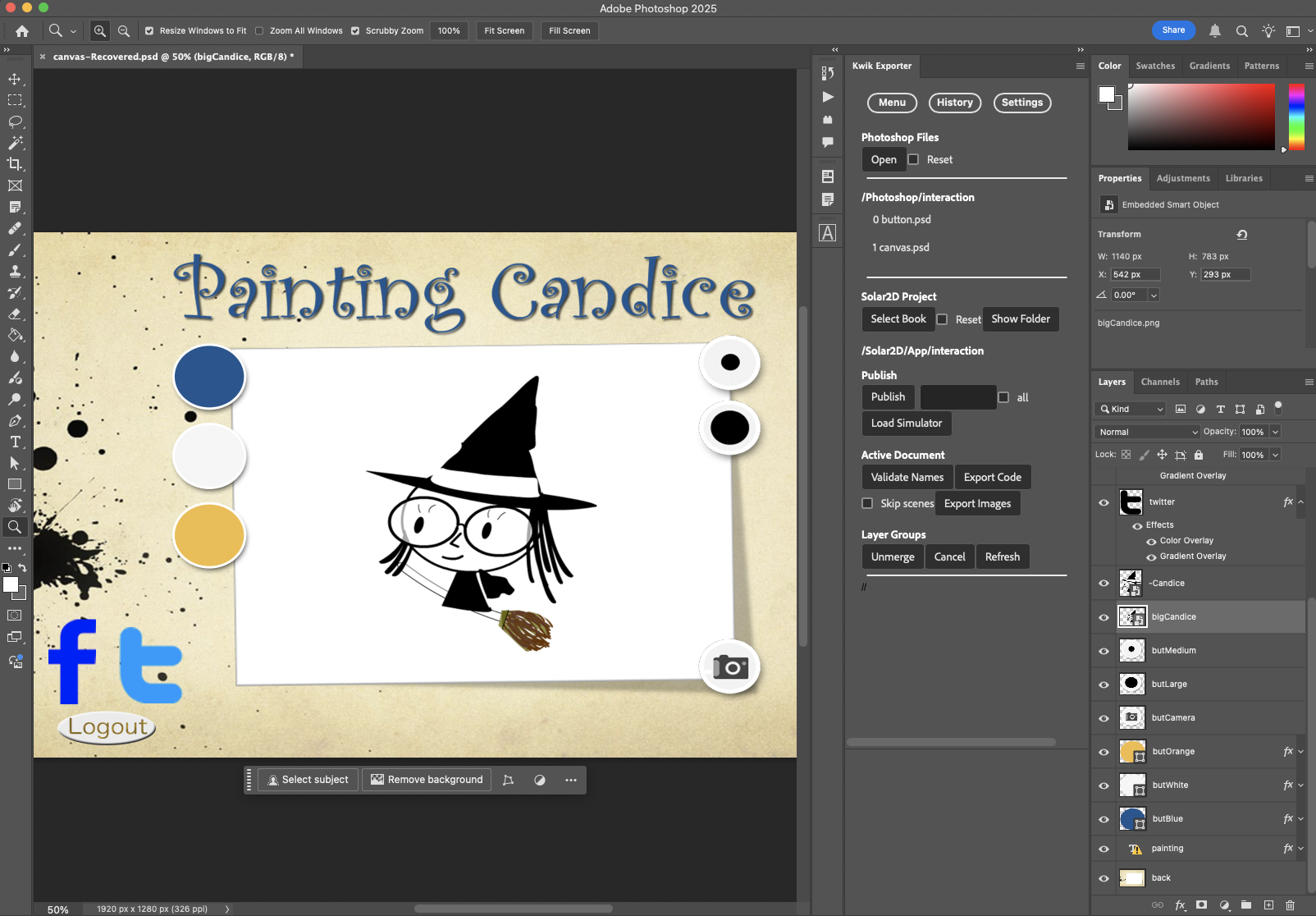

Open canvas.psd file. The psd size is for 1024x768 so let’s create a kwik project with iPad Mini.

It is a good practice to click Publish button after you loaded a PSD file into Kwik to make sure every layer name is valid and then you turn it of exporting image. Now you can work to create animations, interactions etc

Published images on the simulator

Canvas

bigCandeice layer in canvas.psd is the canvas for user to draw with a simple brush. There is one trick for kwik-exporter to detect the canvas size from the layer.

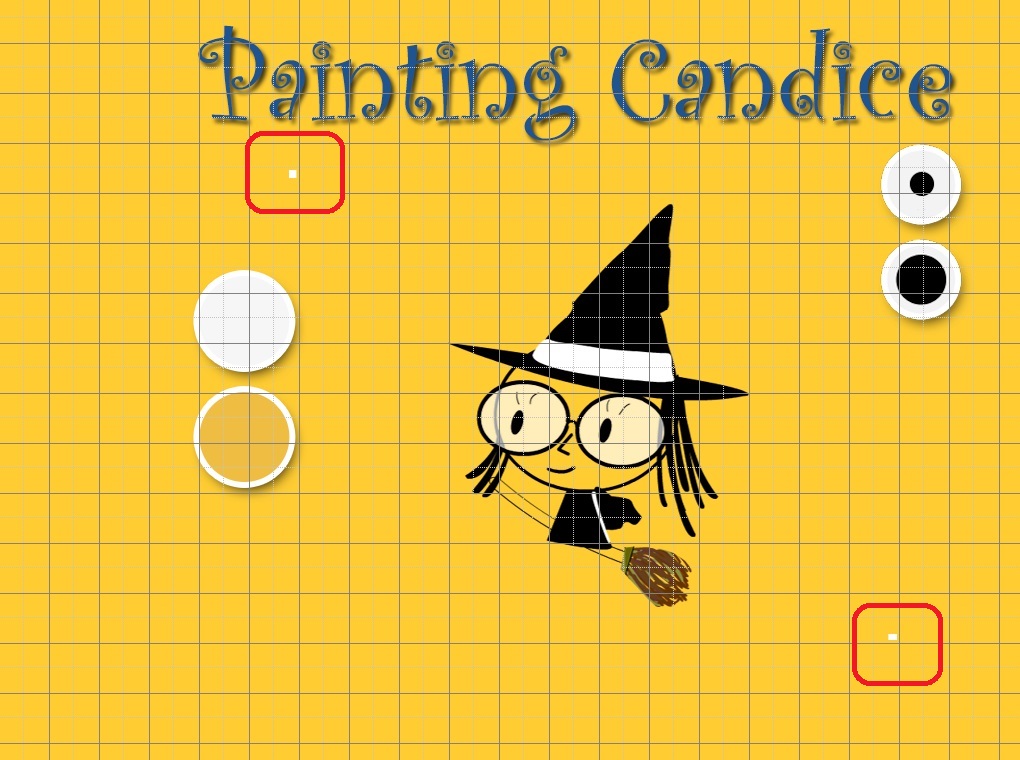

Please be aware there are small squares on the left top corner and the right bottm corner of bigCandice layer. Because photoshop script does not let kwik-exporter to know the width and height of a layer if layer is completely transparent, Kwik needs the small squares to know the width and height.

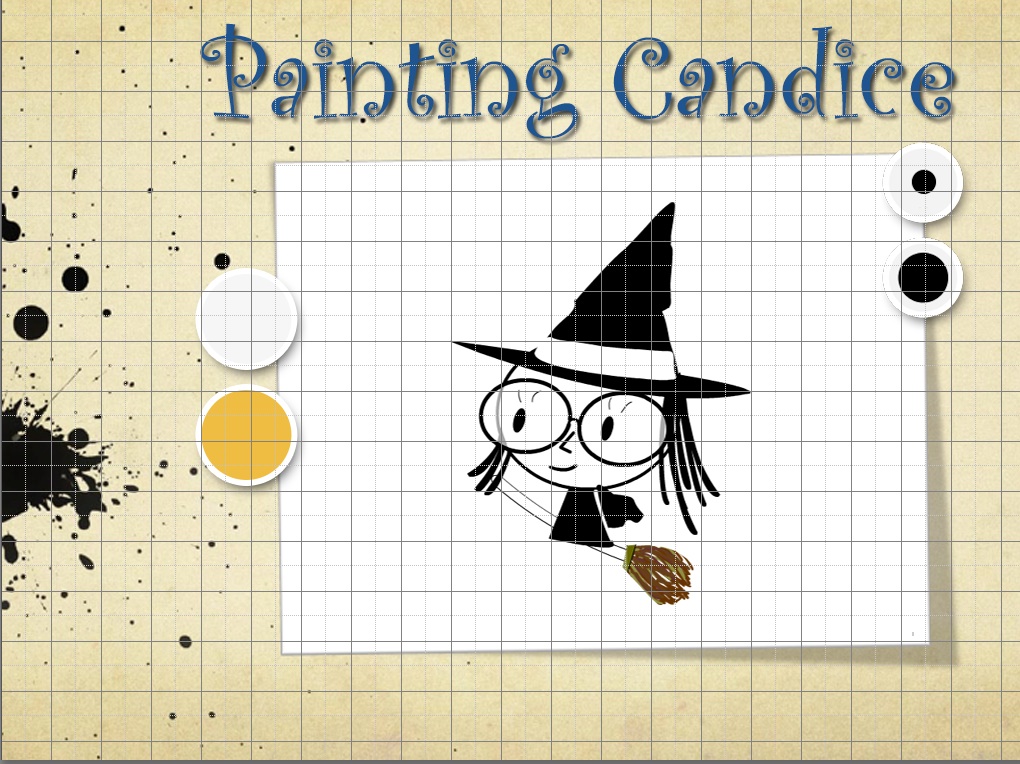

this is actual look without yellow background. The white layer is placed under bigCandice.

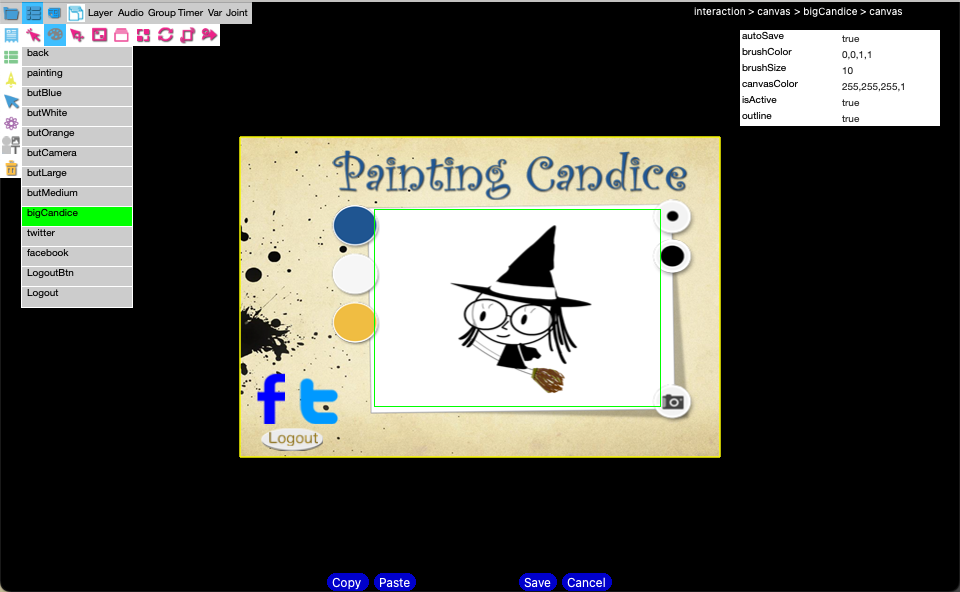

Kwik Editor in Simulator

Select bigCandice layer and click Set canvas from Interactions.

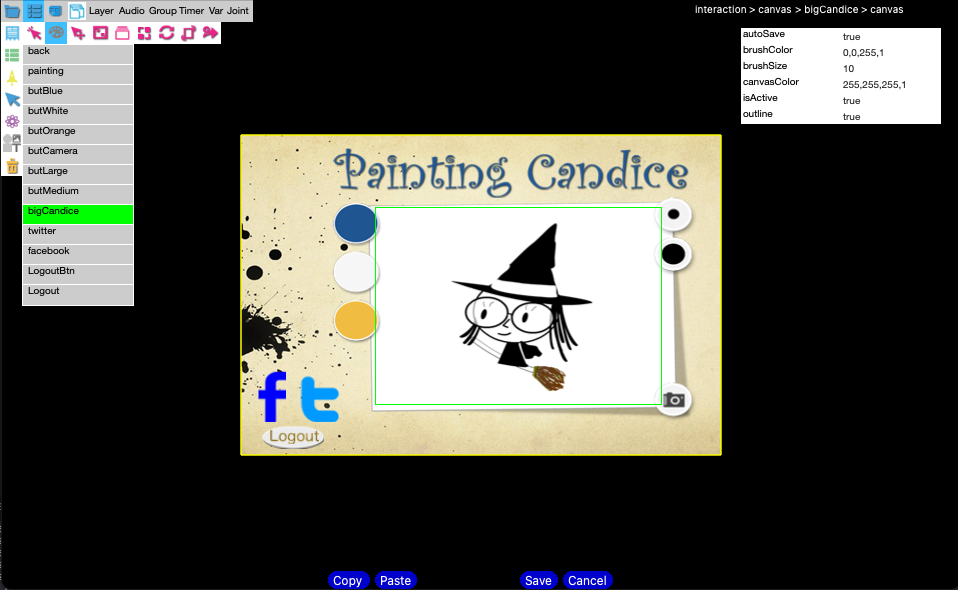

In the properties table, you can use default properties of brush size, brush colors etc.

  • autoSave: true
  • brushColor: 0,0,255,1
  • brushSize:10
  • canvasColor:255,255,255,1

Making Interactions

these buttons are created and if user shakes the device, it also erase the canvas

  • buttons for brush size
  • buttons for brush color
  • button for screenshot to save the drawings to device’s photo galley
  • shake of device to erase the canvas

Bursh Size Button

  • butMedium layer

    • Interactions > Button in Kwik Editor
      • onTap > New Action
        • Interaction > Canvas > Brush Size

    From Canvas interactions, create a brush with Size 15 and Alpha 100%.

  • butLarge

    Bursh Size is 30 and Alpha is 15% for but_large

Take Screenshot Button

  • butCamera

    • Interactions > Button in Kwik Editor
      • onTap > New Action
        • Interaction > Canvas > Screenshot

    To take a screenshot and to save it to device’s photo folder, selet butCamera layer and create a button for screenshot.

Color Button

  • butOrange

    Next Coloring brush, select butOrange and create a button wtih Brush Color

    Brush Color with orange is created

  • butWhite

    Layer butWhite for Brush with white color. It is better not to make all RGB value with 255 to make white. So the B value is 252

  • butBlue

    Brush blue.

Erase Canvas with Shake

  • Interactions > Shake

    Erase canvas is done by shaking the device. From Actions in Project and Pages, let’s create an erase action beforehand.

    • create new Action: act_erase

      • Interactions > Canvas > Erase Canvas

      Now Enable shake in Interactions is set with the action above.

Shake

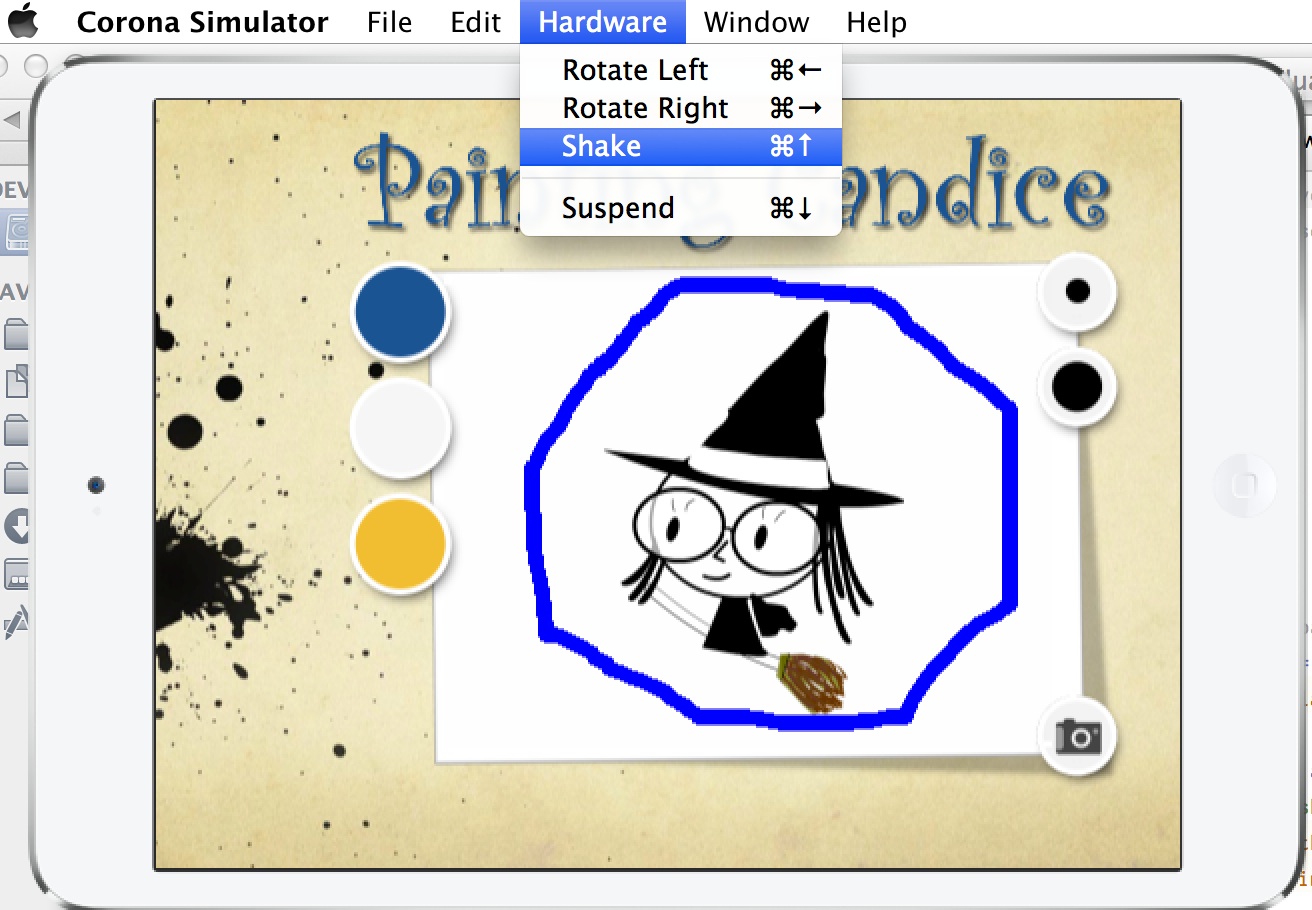

In the simulator, go to Hardware menus > Shake

Note

Set Canvas feature have the ability to save the paintings in a temporary folder, enabling their users to return to their previous art, even after switching pages.
